Install Hydraulic Cylinders-756

1. Install cylinders (A) to center frame with pins and 6 x 36 mm spring pins (B).

2. Attach hydraulic hoses to cylinders with a banjo, restrictor bolt (C) and two 14.5 x 22 x 1.5 mm washers.

3. Install shorter hydraulic hoses from cylinders to T-fitting (D), and the long hose from T-fitting to tractor.

4. Attach hydraulic hoses to tongue with five 350 mm tie straps (E).


A-Cylinder
B-Spring Pin, 6 x 36 mm
C-Restrictor Bolt, 14.5 x 22 x 1.5 mm
D-T-Fitting
E-Tie Strap, 350 mm

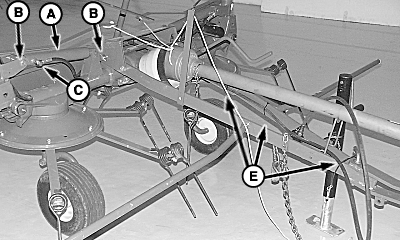

E51579

756 Hay Tedder Shown

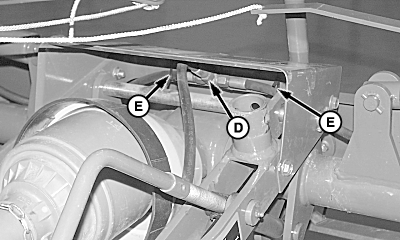

E51580

756 Hay Tedder Shown

OUO1078,0001506 -19-05APR02-1/1
