Install Tine Arms

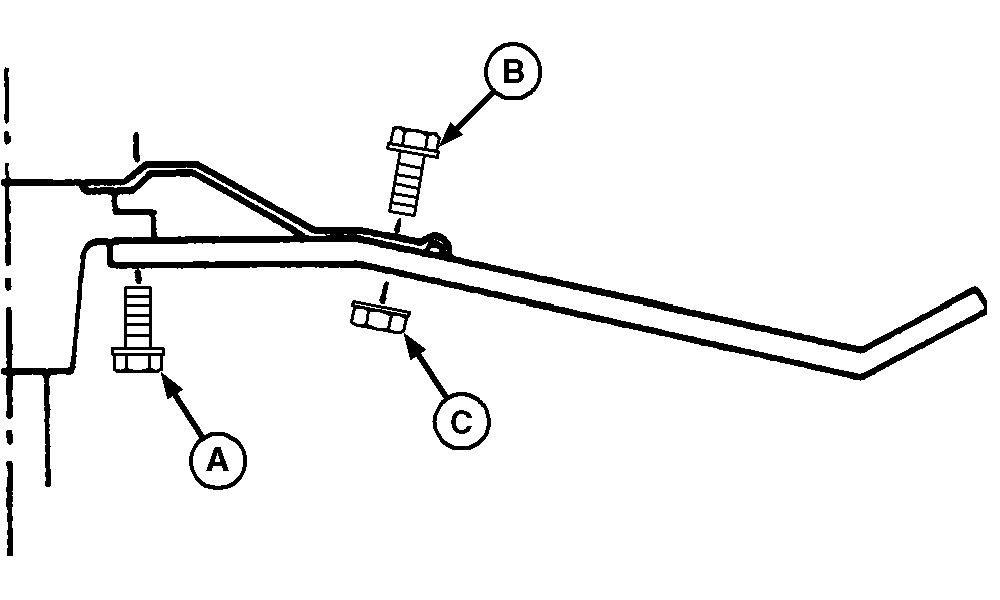

1. Attach tine arm, install cap screw (B) into plate and install nut (C).

2. Install cap screw (A) into rotor hub. Tighten cap screw to specifications:

Specification

Cap Screw -Torque 98 N·m (72 lb-ft)


A-Cap Screw, M12 x 30
B-Cap Screw, M12 x 35
C-Nut, M12
