Install Tines and Deflectors

NOTE: Install tines facing direction of rotation of rotors.

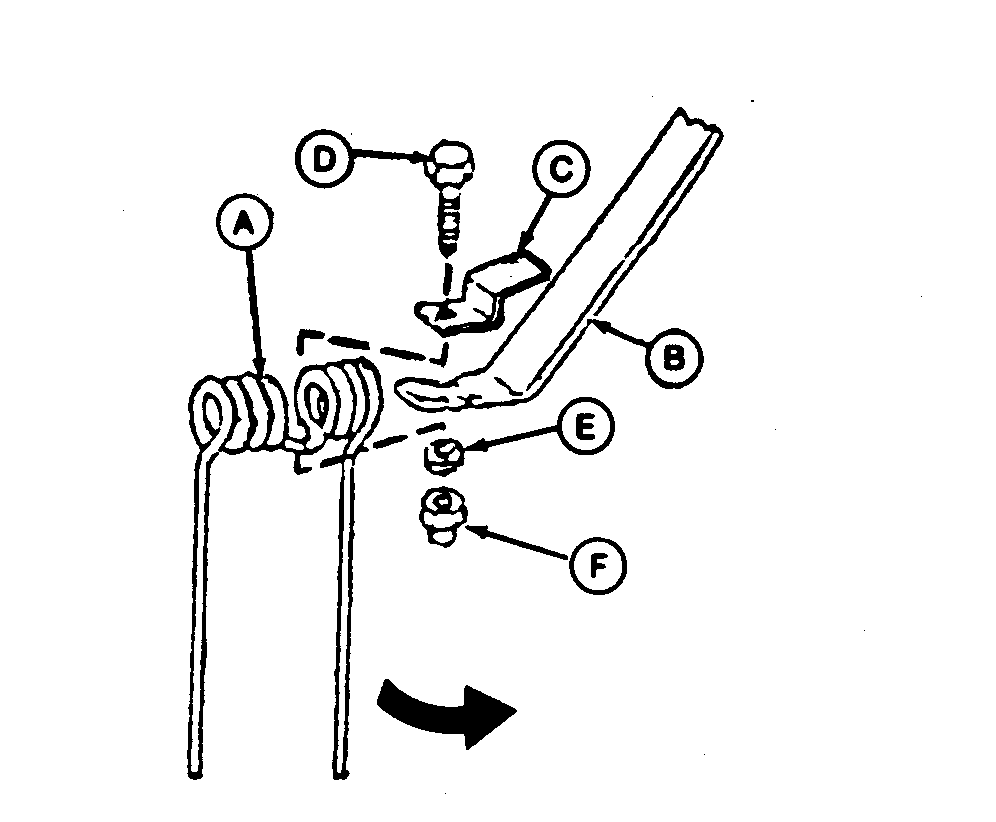

1. Install tines (A) on tine arms (B) so pressure from tines closes spiral.

2. Install deflector (C). Fasten tine and deflector with screw (D), washer (E), and lock nut (F). Tighten to specifications:

Specification

Cap Screw -Torque 150 N·m (110 lb-ft)

IMPORTANT: During first few hours of operation, check tightness of tine nut and bolt. If necessary tighten to specifications.


A-Tine
B-Tine Arm
C-Deflector
D-Screw
E-Washer
F-Lock Nut

E36761
E36762

OUO6059,00004BA -19-31MAY02-1/1
