Install Reflectors-754

1. Install reflector plate (A) over guard rail on right-hand side and under on left-hand side. Fasten with two M10 x 30 cap screws (B), lock washers, and nuts.

2. Install red and amber reflectors (D) and bracket (C). Install red reflector so reflecting surface is located at rear when machine is in transport position. Fasten with countersunk head screw and nut (E).

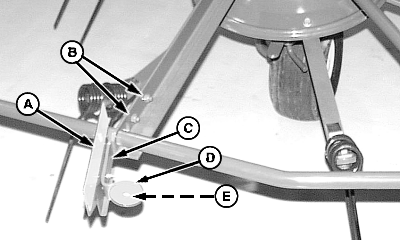

E51568


A-Reflector Plate
B-Cap Screw, M10 x 30
C-Bracket
D-Round Reflector
E-Countersunk Head Screw and Nut
