Attaching Hay Tedder To Tractor-754

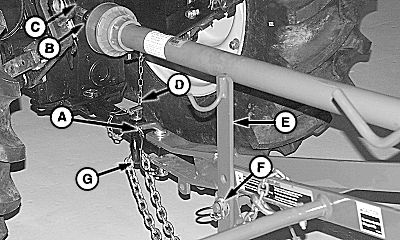

1. Attach tedder to tractor drawbar (A) with hitch pin.

2. Lift PTO shield (C) on tractor and line up spline on PTO and engage pin (B).

3. Attach PTO shield safety chain (D) to drawbar.

4. Remove snap pin (F) and turn stand (E) to the transport position. Install snap pin (F) to lock stand into position.

5. Attach safety chain (G). Remove all slack except what is needed for turns.


A-Drawbar
B-Latch Pin
C-PTO Shield
D-Shield Chain
E-Stand
F-Snap Pin

E51578

754 Shown

OUO6059,00004C1 -19-06JUN02-1/1
