Rotor Release Latch

IMPORTANT: Make sure rotor latch is unlatched before engaging rotors shaft together. Repeat on opposite side of machines.

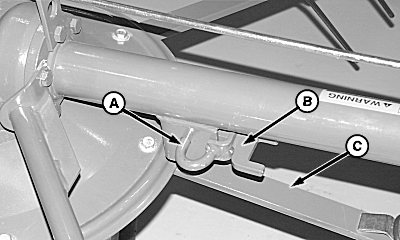

Pull latch handle (A). Lift latch to the up position (B) unlocking arm (C).

A-Handle
B-Latch
C-Rake Arm
