Install Rear Shield and Rear Stand-756

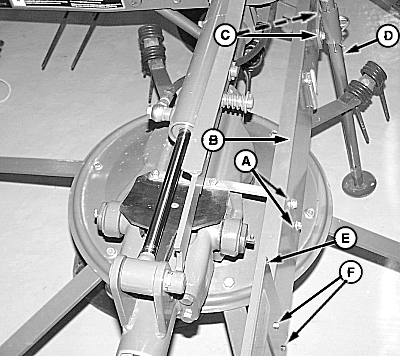

1. Install rear shield (B) with two M8 x 20 cap screws and nuts (A), in the center using one M12 x 30 cap screw and nut, install cap screw (C) into rear parking stand assembly (D), shield (B) and bracket. Do not tighten hardware at this time.

2. Install shield (B) on opposite side using same instruction.

3. Tighten hardware on both sides.

4. Install reflector bracket (E) with two M5 x 20 cap screw and nut (F). One on each side.


A-Cap Screws, M8 x 20
B-Shield
C-Cap Screws, M12 x 30
D-Rear Stand
E-Reflector Bracket
F-Cap Screws, M5 x 20

E51593

OUO6059,00004C5 -19-12JUN02-1/1
