Hydraulic Cylinder Latch Cord-756

2. Using cord (E) with a length of 1.4 m (4 ft 7 in.). Thread it through plate (C) to the center of cord. On each end of the thread it through lock arms (D).

3. Insert the other cord of 2.5 m (8 ft. 2 in.) through plate (C) and tie a knot in the end.

4. Thread other end of cord through the eyelet (F) on bracket (B) into handle. Tie a knot at desired length so locks can easily be maneuvered from the tractor seat. Cut off surplus cord at the knot and fit plug into handle.

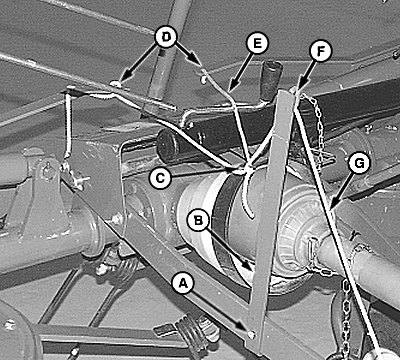

A-Cap Screw and Lock Nut, M8 x 35
B-Bracket
C-Plate
D-Lock Arm
E-Short Cord
F-Bracket Eyelet
G-Long Cord

OUO6059,00004C7 -19-18JUN02-1/1
