Adjusting Lower Feed Roll Scraper

causym CAUTION: To avoid injury or death caused by unexpected lowering of the gate, engage gate lock before working on, around, or under gate in raised position.

1. Open gate to convenient height and lock with gate lock valve.

2. Move tractor selector valve to raise belt tension arm to highest position. Shut off tractor.

TS698

AG,OUO6059,255 -19-17JUL00-1/2

3. Loosen mounting lock nuts on scraper (A).

4. Using feeler gauge, adjust scraper (A) until roll-to-scraper clearance is within specifications at tightest points. Tighten lock nuts.

Specification

Lower Front Gate Roll-to-Scraper -Clearance 2.5-5.5 (0.098-0.217 in.)

5. Rotate roll to make sure scraper does not hit roll at any point as roll is rotated.

6. Unlock gate and lower completely.

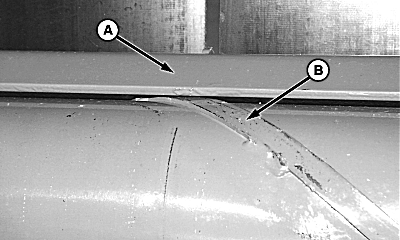

A-Scraper
B-Gate Roll

E21748
E48401

AG,OUO6059,255 -19-17JUL00-2/2
