Adjusting Twine Cutter-to-Twine Arm
If there is crop material which is holding twine arm(s) from moving freely during twine arm cycle, it is recommended that twine arm(s) be manually positioned to release any "hold" they may have on the crop material. Turn off power to twine arm(s). This will help to make the unplugging operation easier and prevent twine arm(s) from moving unexpectedly while your hands may be in the path of the twine arm(s). Stay out of the path of twine arm(s) at all times when power to twine arm(s) is ON. Twine knife has two cutting edges. Be careful when working around the knife. It is sharp. 1. If equipped with a MEGATOOTH ™ pickup; Remove quick-lock pin (A) and rotate left-hand curtain (B) away from front frame. 2. Remove crop material from knife and hex anvil area. 3. Start tractor engine.
|
|
CAUTION:
Twine arm(s) can move unexpectedly when twine arm power is on. Stay out of the path of twine arm(s) at all times when twine arm power is on. During service or adjustment procedures for twine arm(s) or twine cutter mechanism, turn off power to twine arm(s) BEFORE placing your hands in the path of twine arm travel.
|
MEGATOOTH is a trademark of Deere & Company | AG,OUO6077,1022 -19-08AUG00-1/2 |
|

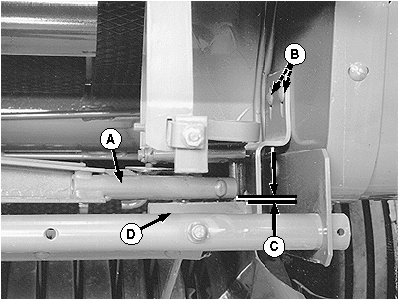

NOTE: If equipped with double twine arms; Dimension (C) applies to the front arm. Rear arm must clear the bottom of the twine knife. 4. Move twine arm(s) using tractor hydraulics or electric toggle switch until front twine arm tube (A) is centered over hex anvil (D). 5. Stop tractor engine and remove key. 6. Open left-hand door and loosen nuts (B). 7. Adjust twine cutter assembly, so clearance between knife hex anvil (D) and twine arm tube (A) is within specifications (C). Twine cutter bracket should be level (parallel with bottom edge of frame). Specification
8. Tighten nuts (B). 9. If rear twine arm contacts bottom side of knife support and minimum clearance in Step 7 is obtained, bend twine cutter bracket so hex anvil is parallel to twine arm. 10. Check knife adjustment. (See CHECKING KNIFE ADJUSTMENT in this section.) 11. If equipped with a MEGATOOTH™ pickup; Rotate left-hand curtain toward front frame and secure with quick-lock pin. |
|
AG,OUO6077,1022 -19-08AUG00-2/2 |
