OME126849: 447 and 547 Round Balers, Block File: AG_OUO6077_1034_19

Adjusting Bale Size Switch

causym CAUTION: Make sure gate is locked. If gate is not locked while performing this procedure, the gate could close suddenly causing injury or death.

1. Raise gate until roller on bale size switch arm is centered over washers (C).

2. Loosen screws (B) and adjust switch to obtain a gap (A) between switch arm and body to specifications. Tighten screws (B).

Specification

Switch Arm-to-Body -Gap

3 mm

(1/8 in.)

3. Turn tractor key switch ON. Bale size alarm (in tractor) should be activated when switch is at this position. If not, repeat Step 2 and decrease gap (A) dimension.

4. Raise gate fully using tractor hydraulics ( tension arm must be completely raised ), then lock gate.

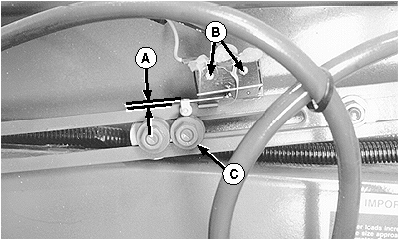

A-Gap
B-Screw
C-Washers

AG,OUO6077,1034 -19-08AUG00-1/2

5. Manually push sliding link (A) forward until bale size switch roller is centered over washers (B).

6. Turn tractor key switch ON. Bale size alarm (in tractor) should activate when switch in at this position. If not, repeat Step 2 and decrease gap.

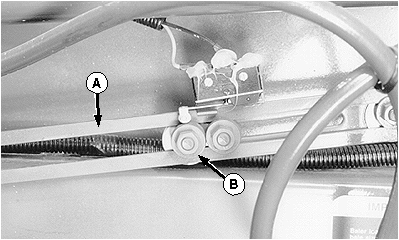

A-Link
B-Washers

AG,OUO6077,1034 -19-08AUG00-2/2
