Adjusting Twine Indicator Retaining Strap(s)

NOTE: If equipped with single twine arm, twine indicator wheel is located on right-hand side only.

1. Loosen cap screw (A).

2. Position retaining strap (B) as follows:

  • Right-hand side of baler; eight o' clock position.
  • Left-hand side of baler; four o' clock position.

3. Adjust dimension (C) between strap and twine indicator wheel according to specifications.

Specification

Strap-to-Twine Indicator Wheel -Distance 0.4-0.8 mm (0.016-0.031 in.)

4. Tighten cap screw (A).

5. Twine indicator wheel must spin freely after adjustment.

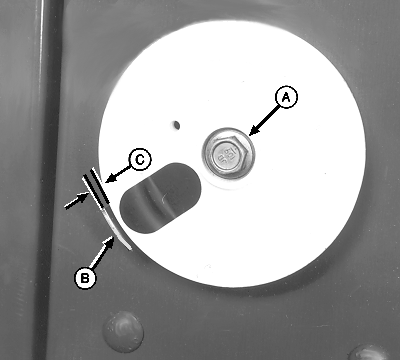

E39735

Right-Hand Side Shown (Eight O'clock Position)


A-Cap Screw
B-Retaining Strap
C-Dimension

AG,OUO6077,1037 -19-08AUG00-1/1
