Adjusting Bale Size Indicator

1. Raise gate fully.

2. Shut off tractor engine. Engage gate lock.

3. Loosen lock nuts (B).

4. Line bottom edge of pointer (A) with bottom edge of red zone as viewed from tractor. Tighten lock nuts.

5. Disengage gate lock and lower gate.

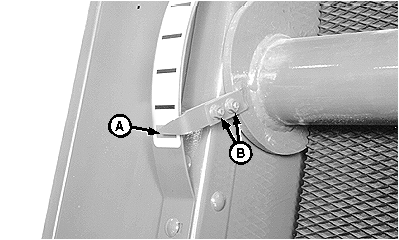

A-Pointer
B-Lock Nuts
