Raising Gate With Hoist

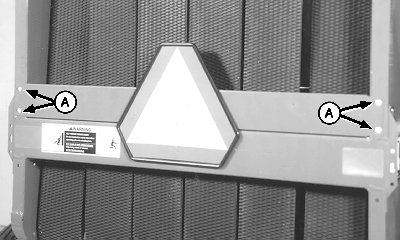

1. Remove four round-head bolts (A) and top belt shield with SMV sign.

2. Wrap chain hoist around cross frame member and raise gate.

3. When finished, replace shield and SMV sign.

A-Round-Head Bolts

AG,OUO6077,1042 -19-08AUG00-1/1
