Removing and Installing Bale Ramp (If Equipped)

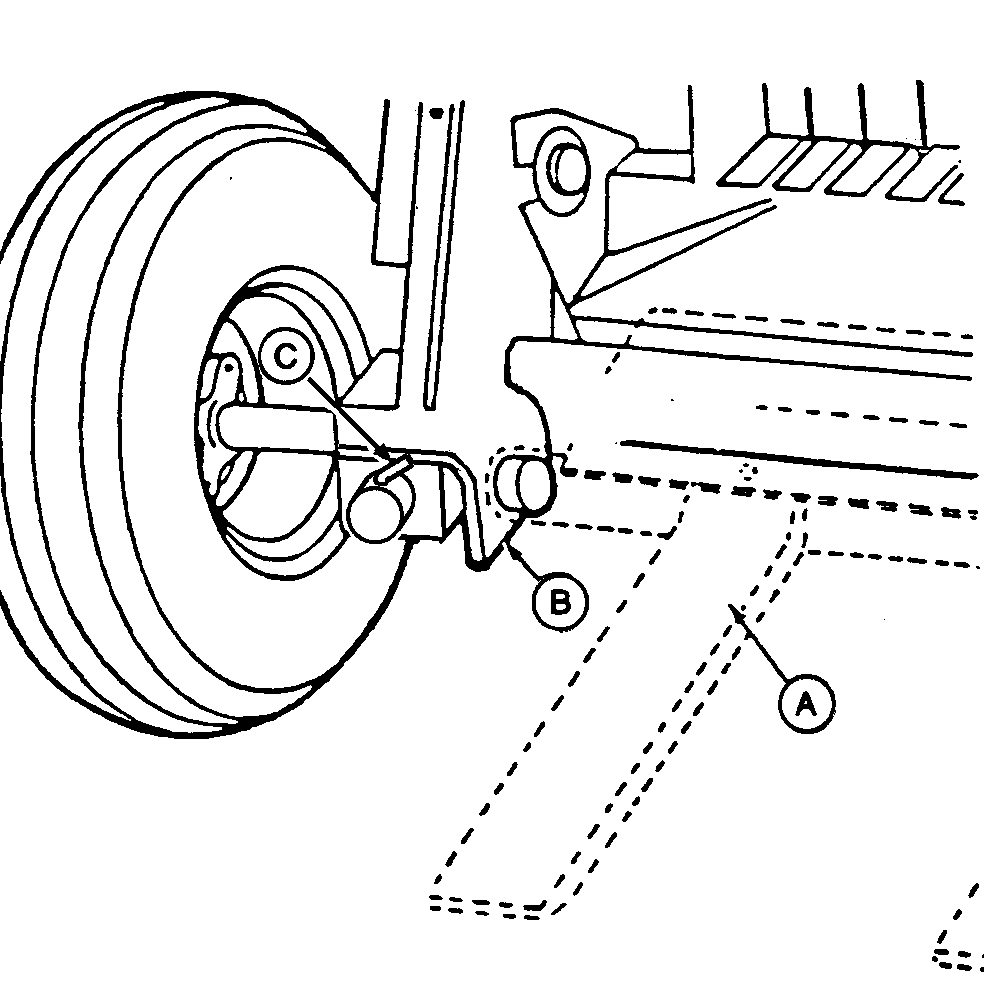

1. Raise and lock gate.

2. Remove spring locking pin and pin (C).

3. Remove support (B) and ramp (A).

A-Ramp
B-Support
C-Pin

AG,OUO6077,1043 -19-08AUG00-1/2

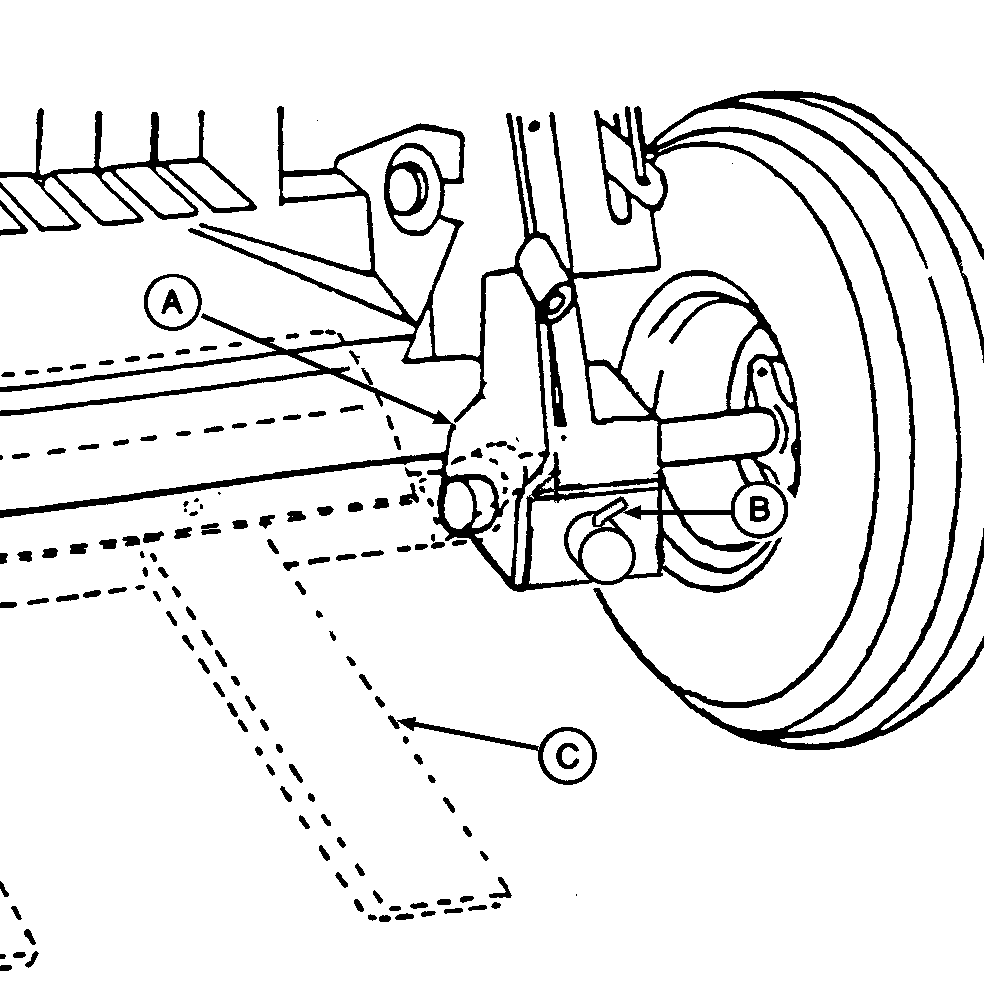

4. Remove ramp (C) from support (A).

5. Remove spring locking pin and pin (B).

6. Remove support (A).

7. Install bale ramp in reverse order of removal.

8. Adjust bale ramp. (See ADJUSTING BALE RAMP in Operating the Baler section.)

A-Support
B-Pin
C-Ramp
