Check Wheel Nut Torque

IMPORTANT: Install wheels with 9.5L-14 tires with valve stems toward the OUTSIDE.

Install wheels with 31 x 13.5-15 tires with valve stems toward the INSIDE.

Incorrect assembly can cause wheel bolts to loosen.

Whenever a wheel has been removed and installed, check torque after one hour of operation. Wheel nuts should be tightened to specifications.

Specification

Wheel Nuts -Torque 115 N·m (85 lb-ft)

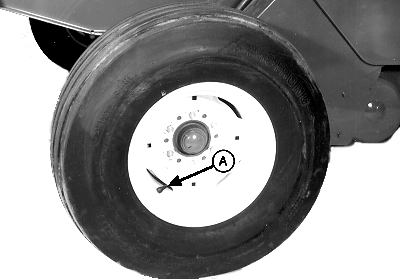

  • Install wheel with 9.5L-14 tires with valve stem (A) toward the OUTSIDE. Fasten with six 1/2-in. nuts.
  • Install wheel with 31 x 13.5-15 tire with valve stem toward the INSIDE. Fasten with six 1/2-in. nuts.
E39894


A-Valve Stem

AG,OUO6077,1055 -19-08AUG00-1/1
