Install Fire Extinguisher (Optional)

A 9.5 L (2-1/2 gal) pressurized-water fire extinguisher can be mounted in the holes that are provided on the baler. (See your John Deere dealer.)

NOTE: If bracket holes do not align with holes in baler, drill new holes in the bracket NOT the baler.

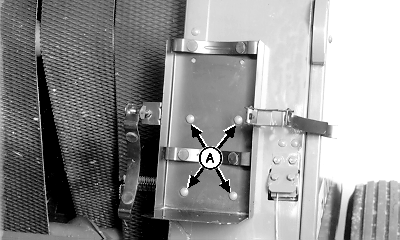

1. Install bracket on left-hand front panel. Fasten with four M8 x 25 round-head bolts (A), washers and nuts.


A-Round-Head Bolts, M8 x 25

E40213

AG,OUO6077,1064 -19-08AUG00-1/2

2. Fill, pressurize and test fire extinguisher. If baler is subjected to cold weather, a nonflammable antifreeze solution should be used to prevent damage to extinguisher.

3. Fasten fire extinguisher to bracket.

E40214

AG,OUO6077,1064 -19-08AUG00-2/2
