Adjust Pickup Float Springs-MegaWide Pickup

Dimension (B) is an initial float spring setting for pickup tooth-to-ground clearance of 25-50 mm (1-2 in.) with wheel spindles in the normal position. (See WHEEL SPINDLE POSITIONS in Preparing the Baler section.)

More spring force will be needed if:

• Operating at pickup tooth-to-ground clearance above 50 mm (2 in.) with spindles in the normal position.
• In rocky conditions, to float over obstacles.

Less spring force will be needed if:

• The pickup does not lower completely to desired operating height.
• The pickup bounces too much and leaves crop.

1. Loosen jam nut (A).

2. Tighten screw into spring plug until dimension (B), between spring plug casting and anchor, is attained. Dimension (B) is intended for pickup tooth ground clearance of 25-50 mm (1-2 in.) with wheel spindles in normal position.

3. Tighten jam nut (A).

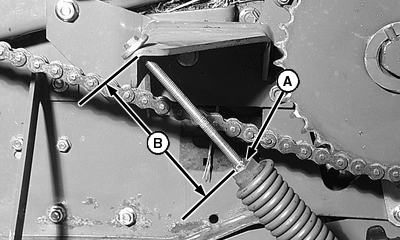

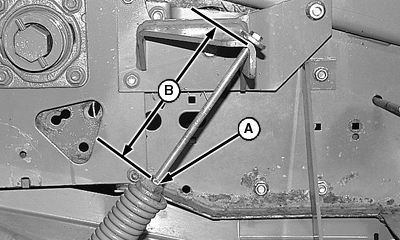

A-Jam Nut
B-Float Spring Setting Dimension

AG,OUO6077,1082 -19-16AUG00-1/1
