Installing Electric Actuated Twine Wrap Controller (If Equipped) in Cab

NOTE: Pictures illustrate 6000 and 7000 Series tractors with ComfortGard ™ cabs.

Mounting brackets can be ordered through Service Parts for ComfortGard ™ and SOUND-GARD ® cabs.

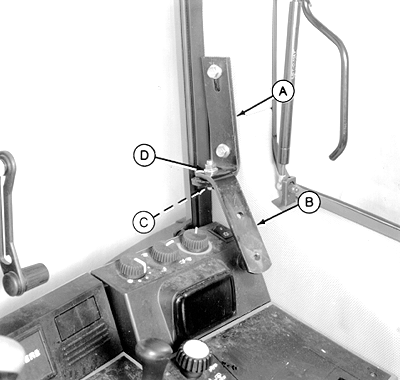

1. Install "L" bracket (A) to rear cab post mounting points. Fasten with two M10 x 20 flange-head cap screws.

2. Attach bracket (B) to "L" bracket (A). Fasten with M10 x 35 cap screw, 11 x 20 x 2 mm washer (C), and flange nut (D).


A-"L" Bracket
B-Bracket
C-Washer, 11 x 20 x 2 mm
D-Flange Nut

E39246

ComfortGard is a trademark of Deere & Company.
SOUND-GARD is a registered trademark of Deere & Company.

AG,OUO6077,873 -19-08AUG00-1/2

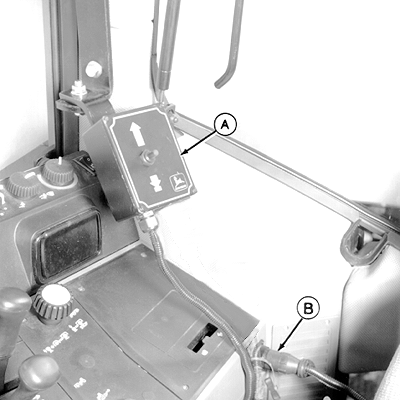

3. Install controller (A) on bracket. Fasten with two 1/4 in. wing nuts.

4. Connect controller harness power plug (B) to tractor convenience outlet.


A-Controller
B-Harness Power Plug

E39247

AG,OUO6077,873 -19-08AUG00-2/2
