Routing Twine-Right-Hand Side (Rear Arm)
NOTE:
Detailed threading diagrams are located on right-hand side of baler above twine box.
If equipped with double twine arms; An additional threading diagram is located on right-hand side of tongue.
1.

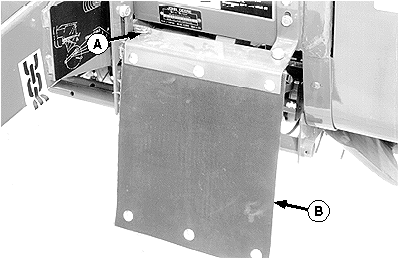

If equipped with MEGATOOTH™ pickup; Remove quick-lock pins (A) and rotate both right and left-hand curtains (B) away from front frame.
A-Quick-Lock Pins
B-Curtains
|
Left-Hand Side (447) Shown
|
|
|
AG,OUO6077,879 -19-08AUG00-1/7
|
|
2.
Pull twine through front guide (A) at front of twine box.
3.
Insert twine between tension plates (B) and pull out through front side (C).
A-Front Guide
B-Tension Plates
C-Front Side of Baler
|
|
|
|
AG,OUO6077,879 -19-08AUG00-2/7
|
|
4.
When using plastic twine and small sisal twine, wrap twine a FULL turn around twine moving indicator (A). Check that indicator is free to spin.
NOTE:
Wrapping large sisal twine a full turn around the indicator may cause the twine to cling to itself and break or cause excessive twine tension.
When using large sisal twine, route twine around indicator (A) without making a full turn.
5.

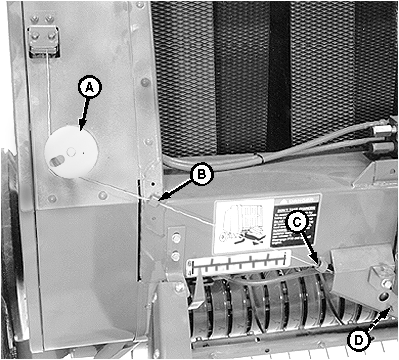

Route twine through guides (B-D).
A-Indicator
B-Guide
C-Guide (547 only)
D-Guide
|
547 Shown
|
|
|
AG,OUO6077,879 -19-08AUG00-3/7
|
|
CAUTION:
Twine arm(s) can move unexpectedly when twine arm power is on. Stay out of the path of twine arm(s) at all times when twine arm power is on. During service or adjustment procedures for twine arm(s) or twine cutter mechanism, turn off power to twine arm(s) BEFORE placing your hands in the path of twine arm travel.
If there is crop material which is holding twine arm(s) from moving freely during twine arm cycle, it is recommended that twine arm(s) be manually positioned to release any "hold" they may have on the crop material. Turn off power to twine arm(s). This will help to make the unplugging operation easier and prevent twine arm(s) from moving unexpectedly while your hands may be in the path of the twine arm(s). Stay out of the path of twine arm(s) at all times when power to twine arm(s) is ON.
NOTE:
Single twine arm (rear arm only), Go to Step 8.
6.

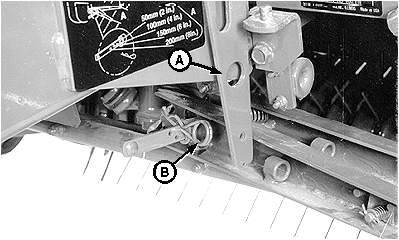

If equipped with front twine arm (double twine arms), remove spring pin (B).
7.
Lift twine arm stop (A) and move front twine arm away from rear twine arm.
|
A-Twine Arm Stop
B-Spring Pin
|
|
|
AG,OUO6077,879 -19-08AUG00-4/7
|
|
NOTE:
Front twine arm (if equipped) removed for illustration purpose.
8.

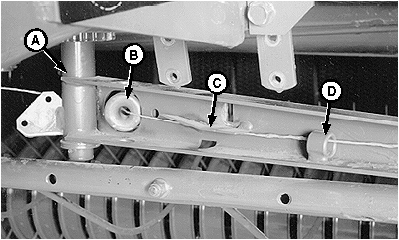

Route twine behind arm pivot (A), through guide (B), under "tab" (C) and through guide (D).
A-Twine Arm Pivot
B-Guide
C-Tab
D-Guide
|
|
|
|
AG,OUO6077,879 -19-08AUG00-5/7
|
|
NOTE:
Remove any crop buildup from tension plates before threading twine.
9.

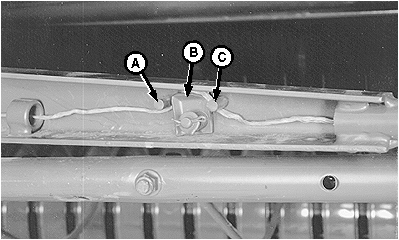

Route twine under guide pin (A), over top of tension plate (B) and under guide pin (C). Pull on twine to get twine between plates.
A-Guide Pin
B-Tension Plate
C-Guide Pin
|
|
|
|
AG,OUO6077,879 -19-08AUG00-6/7
|
|
10.

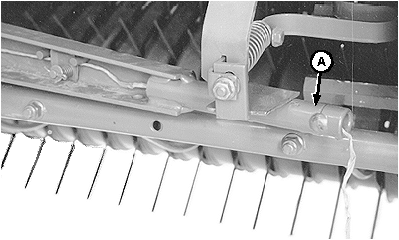

Pull twine through twine tube (A). Pull on twine to remove slack between guides. Twine pull should be within specifications with twine perpendicular to the twine arm. To adjust twine tension, refer to ADJUSTING TWINE TENSION in Operating the Baler section.
Specification
|
Twine Pull
-Force
|
22-45 N
|
(5-10 lb force)
|
11.
Cut twine 305-381 mm (12-15 in.) beyond end of twine tube (A).
12.
If equipped with front twine arm (double twine arms):
-
Lift twine arm stop and move front twine arm toward rear twine arm. Install spring pin, removed in step 6, in one of the four positions for desired twine spacing. (See ADJUSTING TWINE SPACING FOR DOUBLE TWINE WRAP in this section.)
-
Route twine through front arm. (See ROUTING TWINE-LEFT-HAND SIDE [FRONT ARM-IF EQUIPPED] in this section.)
13.
If equipped with MEGATOOTH™ pickup; Rotate both left and right-hand curtains toward front frame and secure with quick-lock pins.
|
A-Twine Tube
|
|
|
