Adjusting Twine Spacing-Electric Double Twine Wrap (If Equipped)

NOTE: Do not vary tractor PTO speed when tying bales. Bale rotation speed must be constant for consistent twine spacing from one bale to the next.

1. Determine the desired twine spacing (A) on bale. There are four settings possible (refer to decal on left-hand side of tongue):

  • 50 mm (2 in.)
  • 100 mm (4 in.)
  • 150 mm (6 in.)
  • 200 mm (8 in.)

2. Set distance (A) between tips of twine arms to the desired setting by installing spring pin in the appropriate position.

E44277

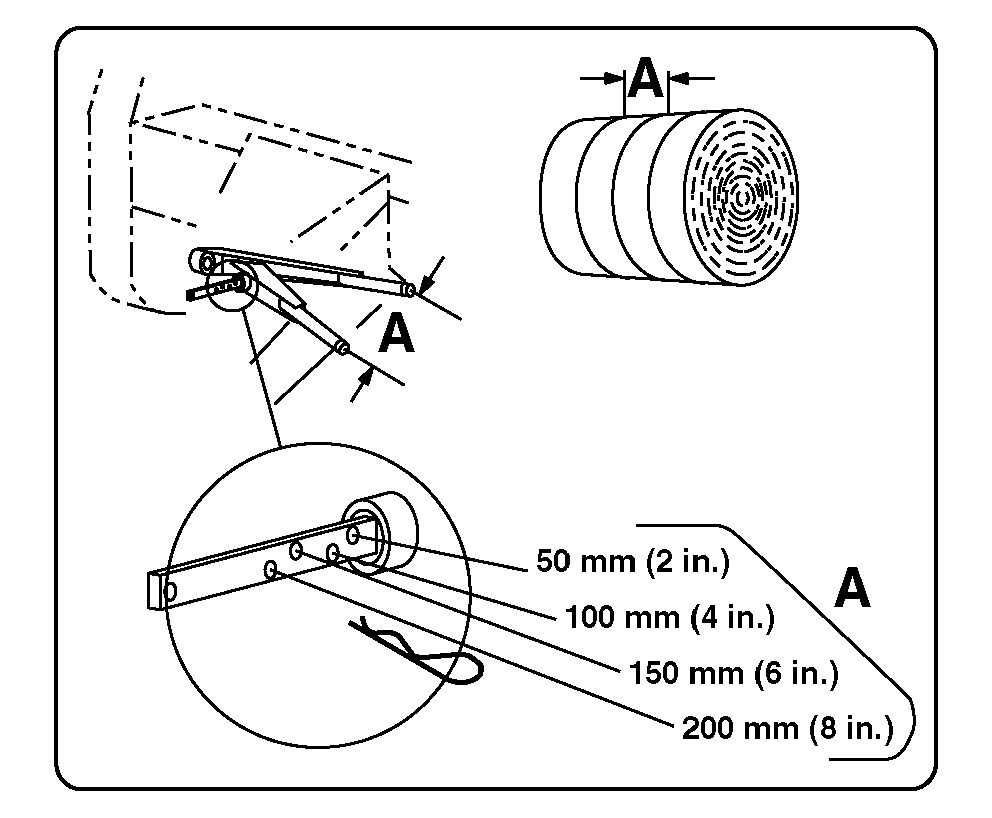

Decal on Left-Hand Side of Tongue


A-Twine Spacing Distance Between Twine Arms

AG,OUO6077,882 -19-08AUG00-1/2

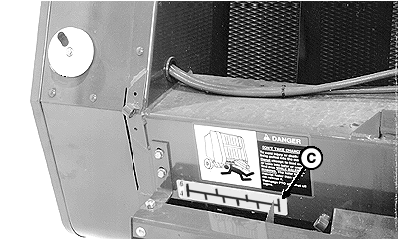

The existing index mark decal (C) on the baler may be used for twine spacing.

Twine spacing:

  • Upper index marks (A)-150 mm (6 in.)
  • Lower index marks (B)-100 mm (4 in.)


A-Upper Index Marks
B-Lower Index Marks

E48320
E47723

447 Baler

E47724

547 Baler

AG,OUO6077,882 -19-08AUG00-2/2
