Wheel Spindle Positions 31 X 13.5-15 Tires-MegaWide Pickup

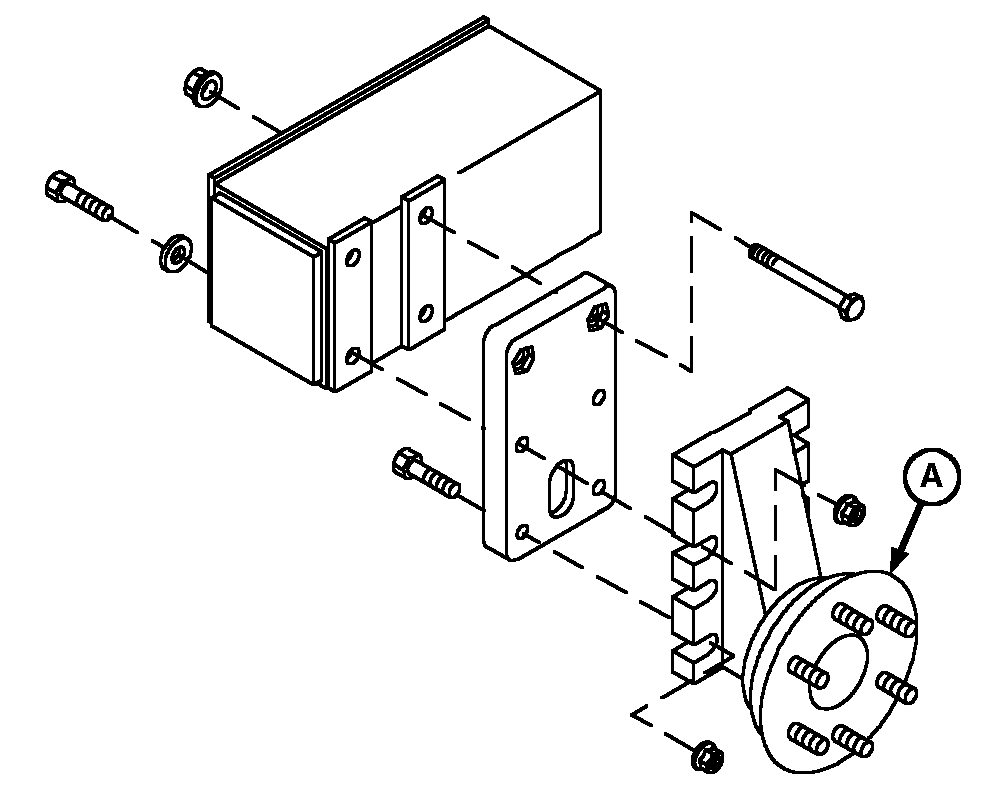

Normal position (A) is recommended for most baling conditions.

  • Recommended for bale ramp.
  • Pickup teeth may touch the ground with pickup completely lowered depending on tractor drawbar height.

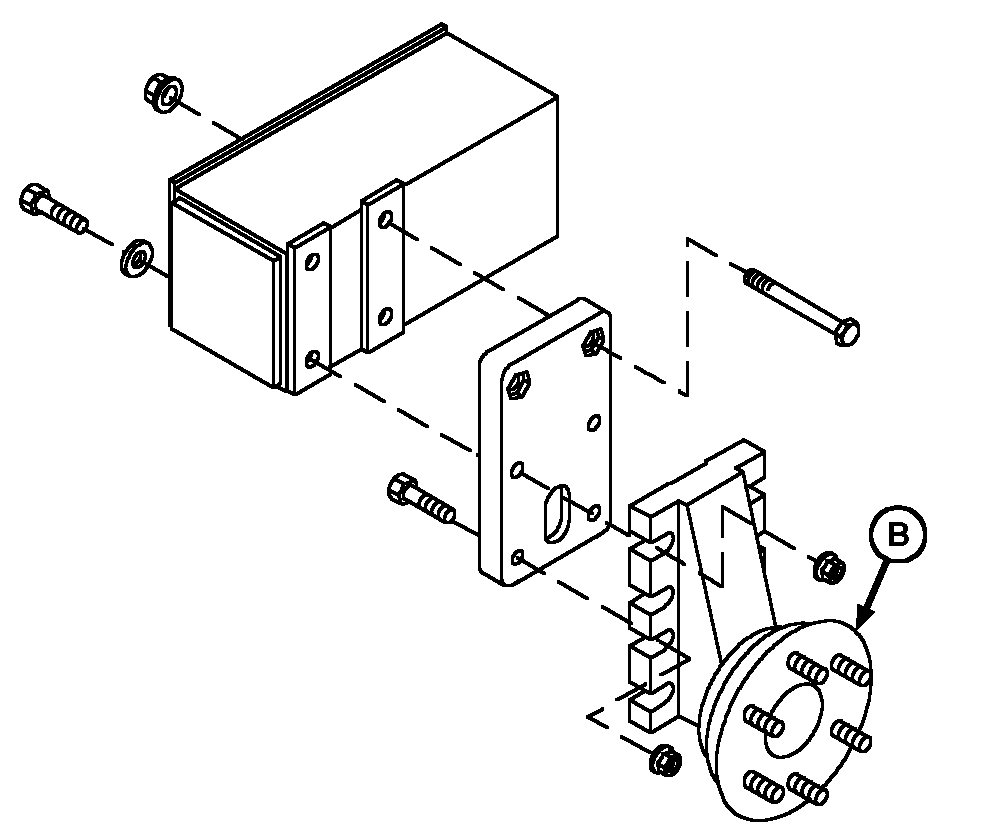

Raised position (B) is recommended for straw crops with tall stubble and soft ground conditions.

  • Recommended for bale ramp.
  • Pickup teeth will not touch the ground with pickup completely lowered.


A-Normal Position
B-Raised Position

E48491
E48789

AG,OUO6077,886 -19-08AUG00-1/1
