Installing Bale Size Alarm

1. Route bale size alarm harness (A) along tongue with hydraulic hoses and into back of tractor.

A-Bale Size Alarm Harness

AG,OUO6077,895 -19-08AUG00-1/3

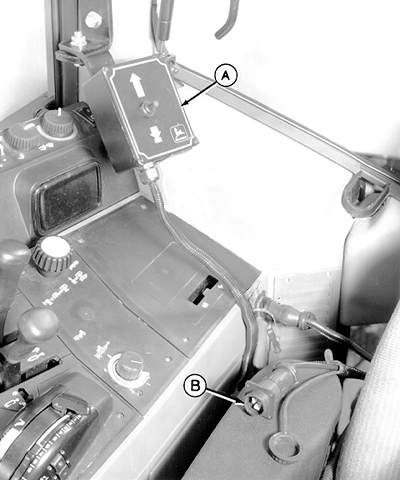

2. Plug into convenience outlet. If tractor is not equipped with convenience outlet, see your John Deere dealer.

If equipped with electric actuated twine wrap controller (A), connect bale size alarm power harness to connector (B).

A-Electric Actuated Twine Wrap Controller
B-Connector

AG,OUO6077,895 -19-08AUG00-2/3

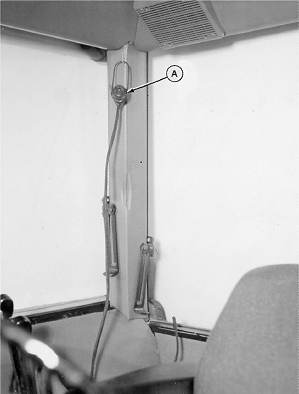

NOTE: On an excessively noisy tractor, locate alarm (A) at ear level.

3. Locate bale size alarm (A) so it is easily heard while operating the baler. Adjust shutter on alarm for desired volume. (See ADJUSTING AUDIBLE BALE SIZE ALARM VOLUME in Operating the Baler section.)

A-Bale Size Alarm

AG,OUO6077,895 -19-08AUG00-3/3
