Connecting Baler Wiring Harness to Tractor

1. If equipped with electric actuated twine wrap; Route baler wiring harness into tractor operator's platform/station.

NOTE: Controller power plug is connected to tractor convenience outlet and bale size alarm power plug is connected to outlet on controller.

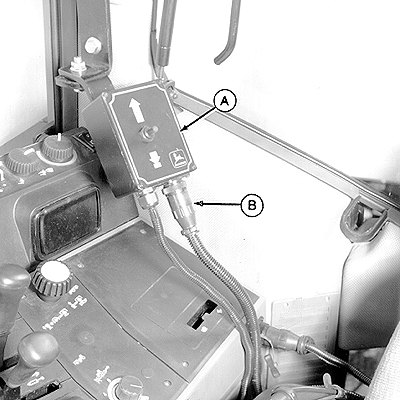

2. Connect baler electric twine wrap actuator harness connector (B) to controller (A).

A-Controller
B-Connector

AG,OUO6077,896 -19-08AUG00-1/1
