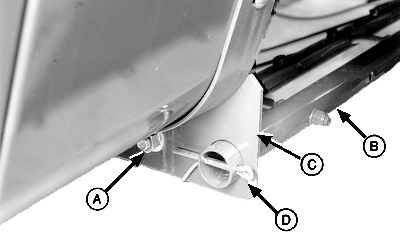

Removing Compressor Rack Assembly

1. Remove cap screw and lock nut (A). Remove cotter pin (D) from right-hand end of compressor rack tube.

2. Slide compressor rack (B) away from right-hand bracket (C).

3. Lower right-hand end and remove compressor rack from left-hand bracket.

A-Lock Nut
B-Compressor Rack
C-Right-Hand Bracket
D-Cotter Pin
