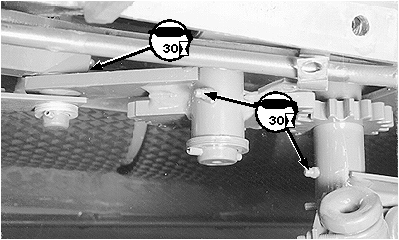

Twine Arm Hub, Hydraulic Cylinder Pivot and Twine Wrap Actuator Rod
 CAUTION:
Twine arm(s) can move unexpectedly when twine arm power is on. Stay out of the path of twine arm(s) at all times when twine arm power is on. During service or adjustment procedures for twine arm(s) or twine cutter mechanism, turn off power to twine arm(s) BEFORE placing your hands in the path of twine arm travel.
If there is crop material which is holding twine arm(s) from moving freely during twine arm cycle, it is recommended that twine arm(s) be manually positioned to release any "hold" they may have on the crop material. Turn off power to twine arm(s). This will help to make the unplugging operation easier and prevent twine arm(s) from moving unexpectedly while your hands may be in the path of the twine arm(s). Stay out of the path of twine arm(s) at all times when power to twine arm(s) is ON.
NOTE:

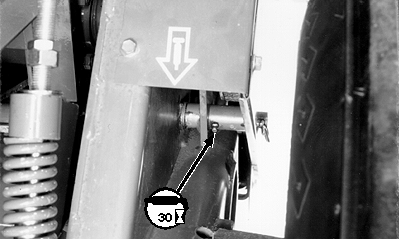

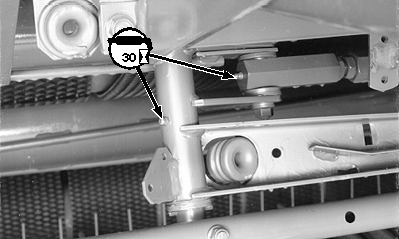

Hydraulic cylinder pivot lubrication fitting is on machines equipped with hydraulic actuated twine wrap only.
If equipped with a MEGATOOTH
™
pickup; Rotate curtains out of the way to access lubrication fittings.

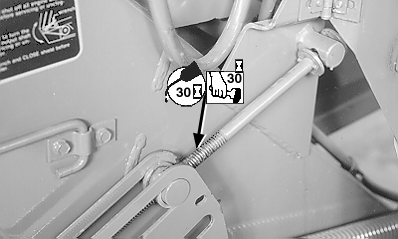

Clean off material/crop buildup from actuator rod.
|
