Annually

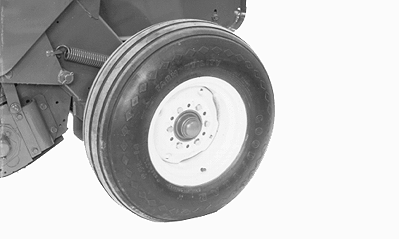

Baler Wheel Bearings and Gathering Wheel Bearings (If Equipped)

Remove the wheels; then clean, repack, and adjust bearings. Use John Deere EP Moly or an equivalent SAE multipurpose type grease, or wheel bearing grease.

E39208

Baler Wheel Shown

AG,OUO6077,977 -19-08AUG00-1/4

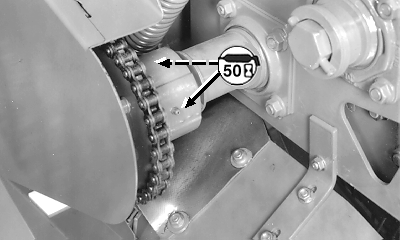

Slip Clutch-MEGATOOTH ™ or MegaWide Pickup

IMPORTANT: Do not over-lubricate slip clutch grease fittings or clutches may not slip. Apply only two shots per grease fitting. Use only a hand grease gun to lubricate slip clutch fittings.

Fittings needs to be greased once a year or if slippage occurs.

Lubrication fittings are designed to release excess pressure.

  • Keep lubrication fittings clear.
E39741

MEGATOOTH is a trademark of Deere & Company

AG,OUO6077,977 -19-08AUG00-2/4

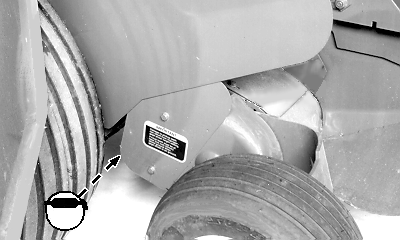

Pickup Idler Arm
E44438

Regular and MEGATOOTH™ (Right-Hand Side)

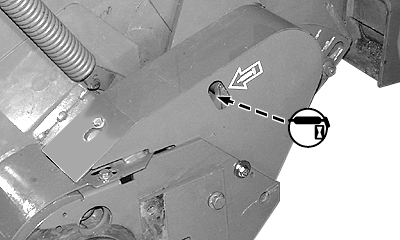

E48762

MegaWide (Left-Hand Side)

AG,OUO6077,977 -19-08AUG00-3/4

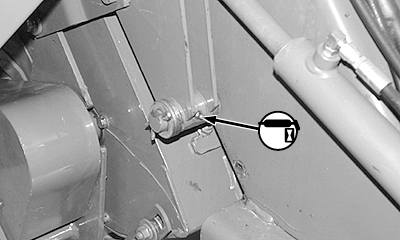

Pickup Lift Bellcrank Pivot
E48765

MegaWide Shown

AG,OUO6077,977 -19-08AUG00-4/4
