Adjusting Lower Belt Drive Roll Chain

To ensure that all slack is removed from chains, close gate and engage PTO a few seconds. Shut off tractor.

Adjust tension on lower belt drive roll chain (B) by loosening idler mounting nut (A) and pressing idler against chain to specifications.

Specification

Idler-to-Chain -Tension (Force) 22-44 N (5-10 lb force)

Tighten idler mounting nut to specifications. Readjust as necessary.

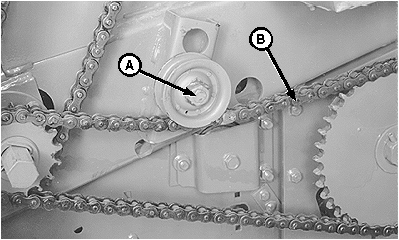

E39266


A-Idler Mounting Nut
B-Lower Belt Drive Roll Chain

Item Measurement Specification

Idler Mounting Nut

Torque 163 N·m
(120 lb-ft)

AG,OUO6077,998 -19-08AUG00-1/1
