Adjusting Upper Roll Drive Chain

If there is no separation between spring coils (B), remove one link from chain (A).

To remove chain link:

1. Loosen nut (C) on eyebolt to release chain tension.

2. Remove one link from chain.

3. Tighten nut (C).

4. Check spring coils for separation. Repeat procedure as necessary.

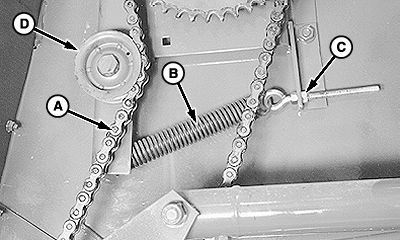

E39267


A-Chain
B-Spring Coils
C-Nut

AG,OUO6077,999 -19-08AUG00-1/1
