Wheel Spindle Position 9.5L-14 Tires-MegaWide Pickup

Normal position (A) is recommenced for all baling conditions.

• Recommended with bale ramp.
• Pickup teeth may touch the ground with pickup completely lowered. Depending on tractor drawbar height.

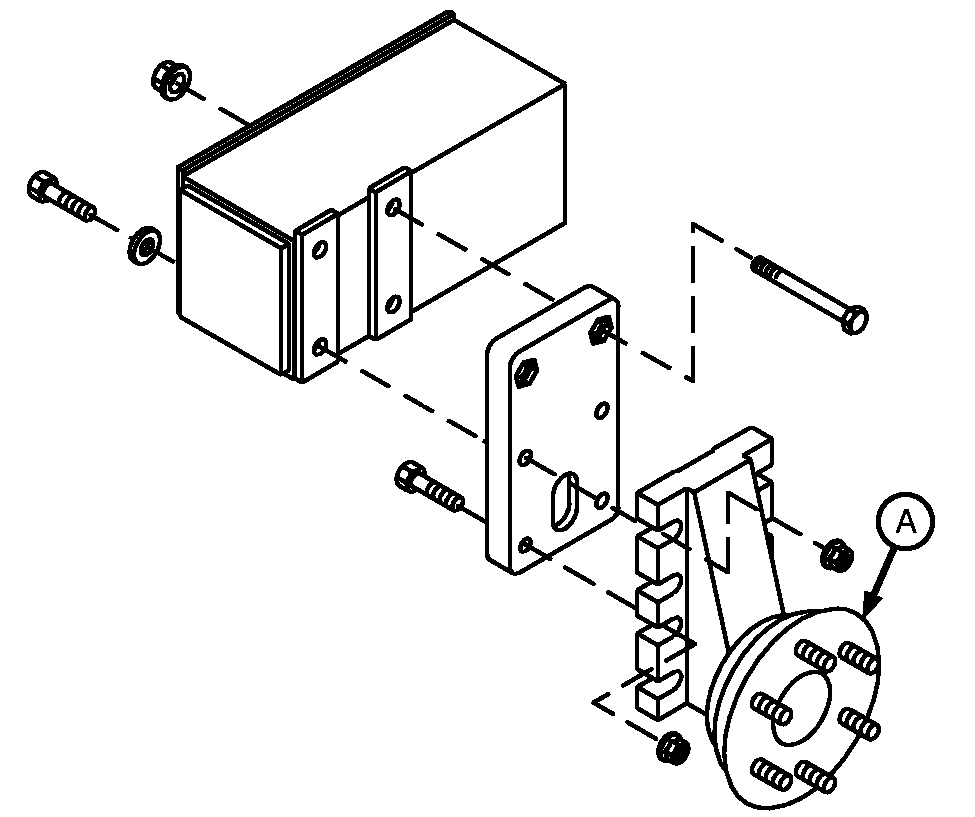

A-Normal Position

OUO6059,0000077 -19-02OCT00-1/1
