Connecting Baler Wiring Harness to Tractor-BALETRAK PLUS® System

1. Route baler wiring harness into tractor operator's platform/station.

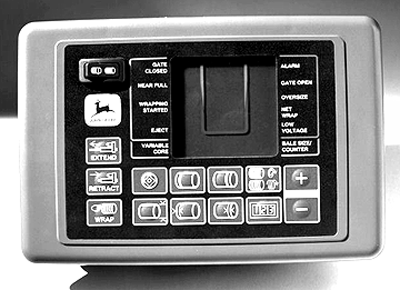

2. Connect baler wiring harness to BALETRAK PLUS ® monitor-controller harness connector. Line up timing mark on connectors and tighten locking ring. Monitor-controller power plug is connected to tractor convenience outlet.
