Setting Bale Diameter

Initial setting for bale diameter is 56 in. (1.42 m).

Bale diameter can be set from 36 to 60 in. (0.91 to 1.52 m) at 0.5-in. (0.01 m) increments.

• Press and hold BALE DIAMETER key (A) and PLUS key to raise diameter setting.
• Press and hold BALE DIAMETER key (A) and MINUS key to lower diameter setting.

Optional variable core diameter setting should normally be at least 4 in. (0.10 m) under bale diameter setting.

Variable core setting need not be changed if bale size is increased, unless desired.

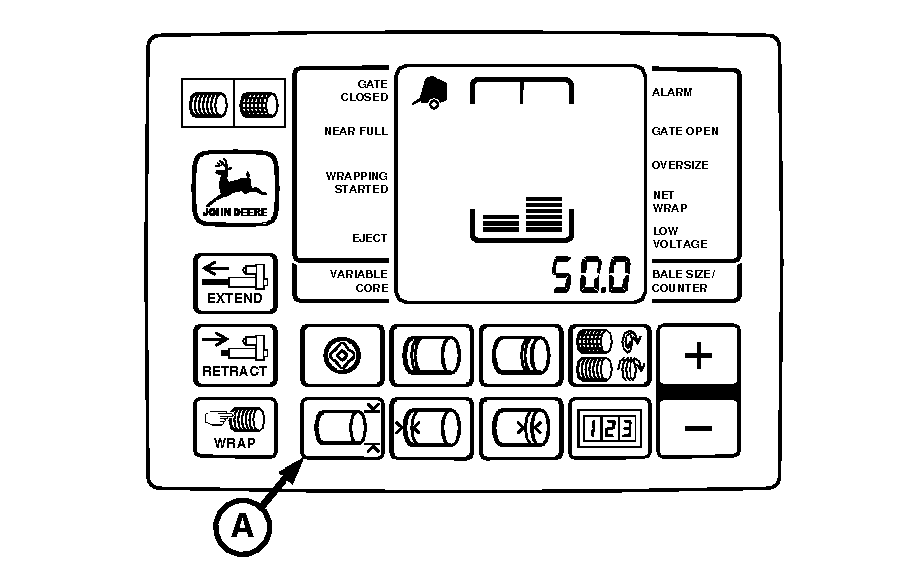

A-Bale Diameter Key
