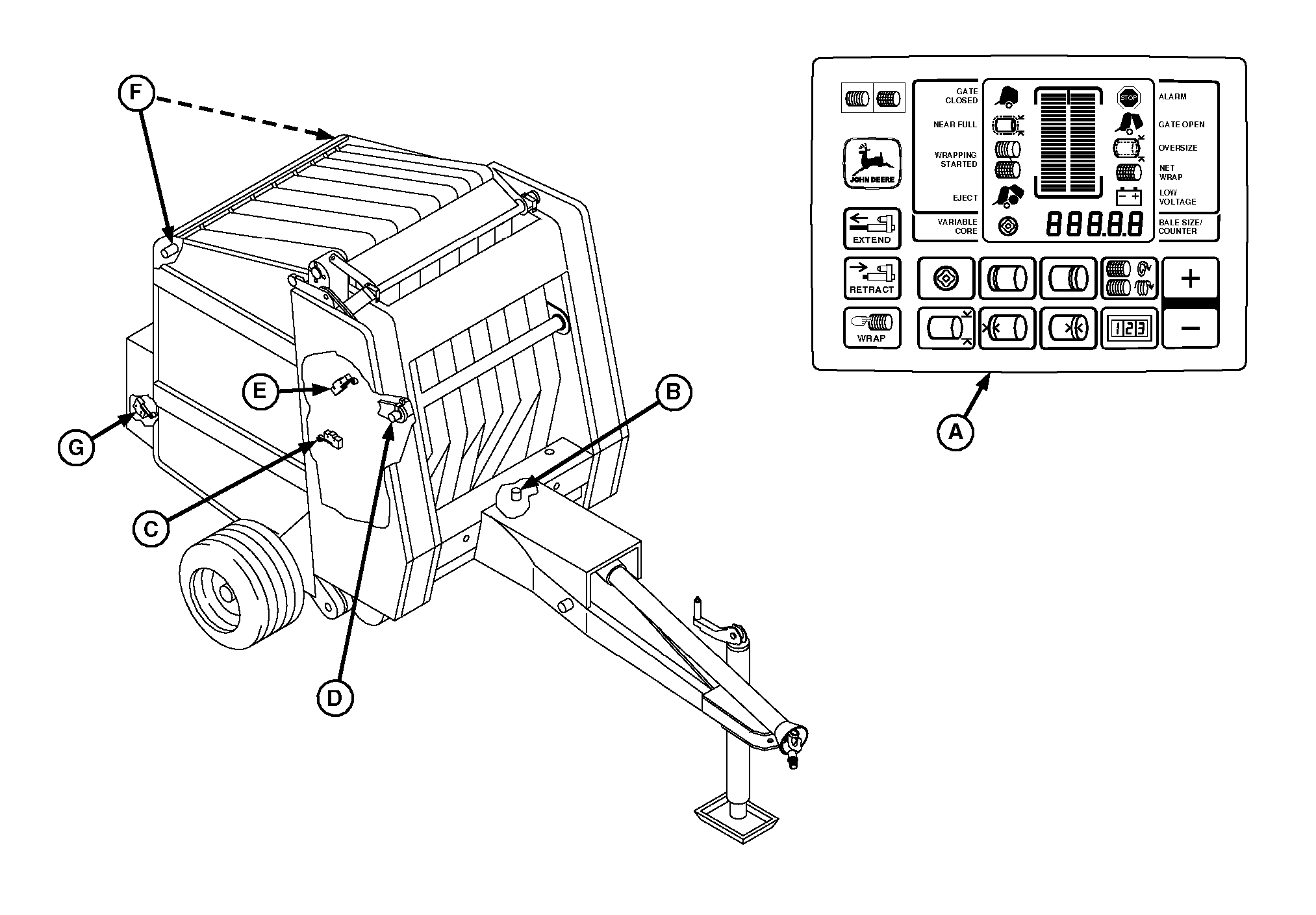

A-Monitor-Controller (located on tractor)
B-Twine Wrap Sensor

C-Gate Close Switch
D-Bale Diameter Sensor

E-Oversize Bale Switch
F-Bale Shape Sensors

G-Net Wrap Switch (if equipped)

NOTE: Monitor-controller (A) is located on tractor.

The net wrap mechanism is optional equipment.

OUMX005,000005F -19-29SEP00-1/1
