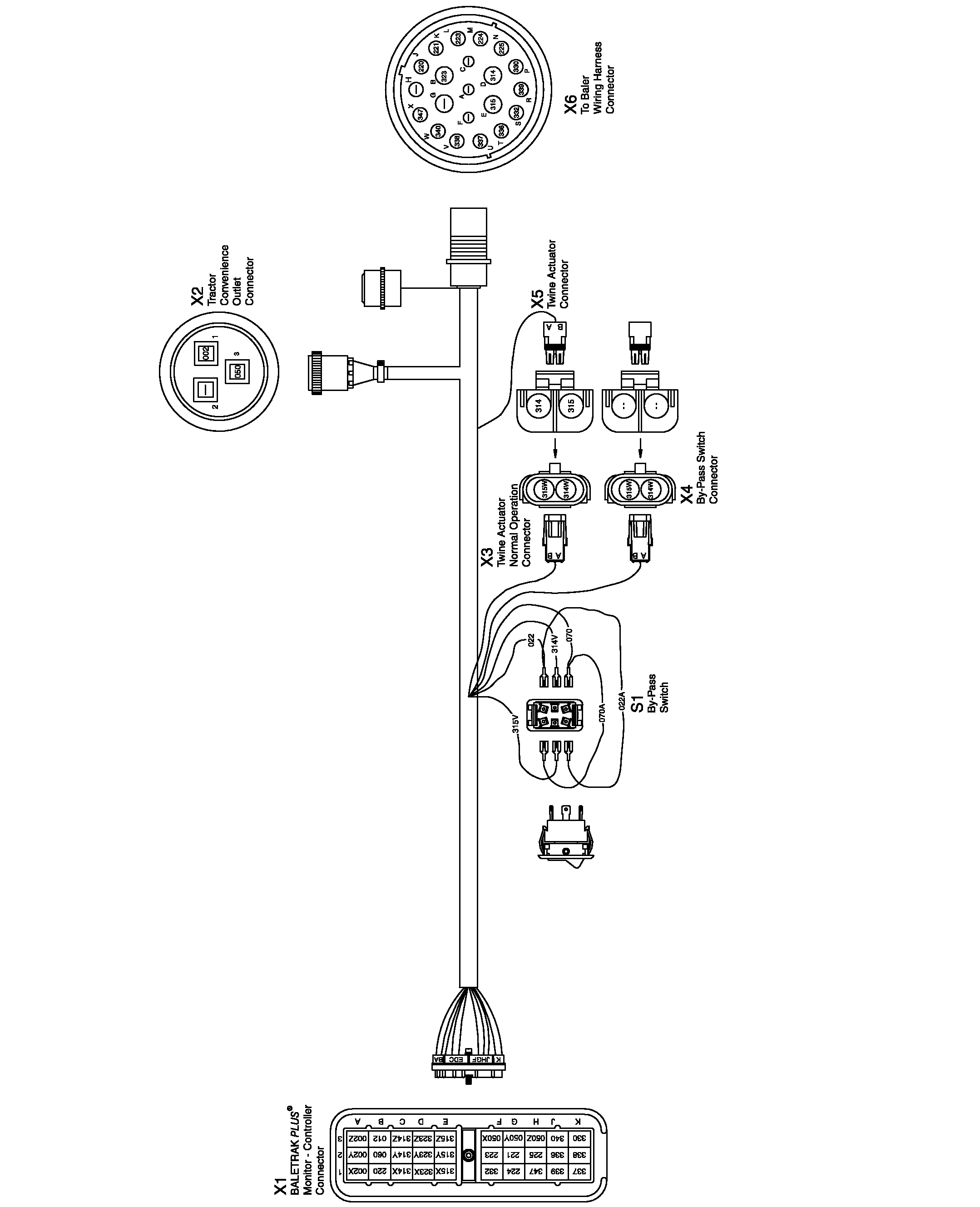

| X1 BALETRAK PLUS® Monitor-Controller Connector |
| Terminal |
Circuit |
Function |
Wire Color |
| 1A |
002X |
Power |
Red |
| 1B |
220 |
Ground |
Black |
| 1C |
314X |
Twine Actuator |
Yellow |
| 1D |
323X |
Net Actuator |
Orange |
| 1E |
315X |
Twine/Net Actuator |
Green |
| 1F |
332 |
Sensor |
Red |
| 1G |
224 |
Oversize Bale Switch |
Yellow |
| 1H |
347 |
Variable Core |
Purple |
| 1J |
339 |
Twine Arm Sensor |
White |
| 1K |
337 |
Left Bale Shape Sensor |
Purple |
| 2A |
002Y |
Power |
Red |
| 2B |
060 |
Ground |
Black |
| 2C |
314Y |
Twine Actuator |
Yellow |
| 2D |
323Y |
Net Actuator |
Orange |
| 2E |
315Y |
Twine/Net Actuator |
Green |
| 2F |
223 |
Gate Close Switch |
Orange |
| 2G |
221 |
NOT USED |
Brown |
| 2H |
225 |
Net Switch |
Green |
| 2J |
336 |
Bale Diameter Sensor |
Blue |
| 2K |
338 |
Right Bale Shape Sensor |
Gray |
| 3A |
002Z |
Power |
Red |
| 3B |
012 |
Power |
Red |
| 3C |
314Z |
Twine Actuator |
Yellow |
| 3D |
323Z |
Net Actuator |
Orange |
| 3E |
315Z |
Twine/Net Actuator |
Green |
| 3F |
050X |
Ground |
Black |
| 3G |
050Y |
Ground |
Black |
| 3H |
050Z |
Ground |
Black |
| 3J |
340 |
Ground |
Black |
| 3K |
330 |
Ground |
Black |
|
| X2 Tractor Convenience Outlet Connector |
| Terminal |
Circuit |
Function |
Wire Color |
| 1 |
002 |
Power |
Red |
| 2 |
|
Open |
|
| 3 |
050 |
Ground |
Black |
| X3 Twine Actuator Normal Operation Connector |
| Terminal |
Circuit |
Function |
Wire Color |
| A |
314W |
Twine Actuator |
Yellow |
| B |
315W |
Twine/Net Actuator |
Green |
| X4 By-Pass Switch Connector |
| Terminal |
Circuit |
Function |
Wire Color |
| A |
314W |
Twine Actuator |
Yellow |
| B |
315W |
Twine/Net Actuator |
Green |
| X5 Twine Actuator Connector |
| Terminal |
Circuit |
Function |
Wire Color |
| A |
314 |
Twine Actuator |
Yellow |
| B |
315 |
Twine/Net Actuator |
Green |
|
