Replacing Gate Close Switch

1. Set monitor-controller selector switch to OFF (centered) position. Turn tractor key to OFF position. Remove key.

NOTE: Label wires before disconnecting from switch to ensure proper connection to new switch terminals.

2. Label wires.

OUMX005,0000095 -19-02OCT00-1/2

3. Remove mounting hardware and bracket with switch (A).

4. Disconnect wires from switch.

5. Remove switch from mounting bracket.

6. Install new switch in reverse order of removal using the following special instructions:

  • Adjust switch or bracket position for proper operation. (See ADJUSTING GATE CLOSE SWITCH in this section.)
  • Confirm switch operation by taking test readings using monitor-controller. (See TESTING GATE CLOSE AND OVERSIZE BALE SWITCHES [CHANNELS 11 AND 12] in this section.)

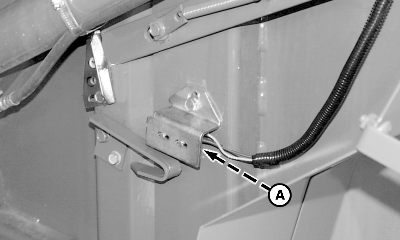

E48458


A-Switch

OUMX005,0000095 -19-02OCT00-2/2
