Replacing Monitor-Controller Fuse and Relays

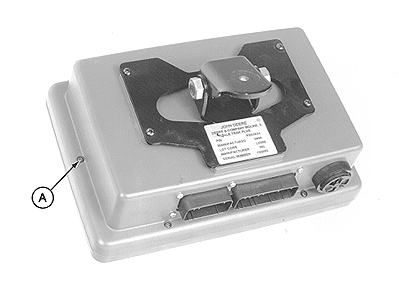

1. Remove six Torx-head screws (A) to separate monitor-controller switch/display panel from circuit board base.

A-Torx-Head Screw (6 used)

AG,OUMX005,1522 -19-02AUG00-1/2

Monitor-Controller Circuit Board Base

A-Relay, Extend (K4)
B-Relay, Battery + (K5)

C-Fuse, 30 Amp (Green), Actuator

D-Relay, Twine/Net (K2)
E-Relay, Retract (K3)

F-Relay, Variable Core (K6)

NOTE: A spare fuse is located on monitor-controller switch/display panel.

2. Replace fuse (C) or relays (A, B, or D-F) as necessary.

AG,OUMX005,1522 -19-02AUG00-2/2
