Setting Number of Net Wraps (If Equipped)

NOTE: Net wrap settings range between 1.2-5 wraps (in 0.1 wrap increments), with initial setting of two wraps.

1. Turn tractor key to ON position. Do not start tractor engine. Set selector switch toward NET symbol (A) to turn monitor-controller ON.

2. Press and hold NET WRAP key (B). Press PLUS or MINUS keys until desired number of wraps (2-5) appears in digital display.

3. Release NET WRAP key to enter setting into memory.

4. Set monitor-controller selector switch to OFF (centered) position. Turn tractor key to OFF position. Remove key.

NOTE: Two wraps are suitable for most crops, but three or more wraps are needed for:

Short, dry, slick crops

Long, stiff, cane-type crops

Cornstalks

5. If machine RPM is less than rated PTO speed, use the following chart as a guideline for desired wraps.

NET WRAP CHART
Engine RPM Desired No. Of Wraps Approximate Monitor Setting Needed
Rated PTO 2 2
  3 3
1800 RPM 2 2.4
  3 3.6
1500 RPM 2 2.9
  3 4.3
1300 RPM 2 3.3
  3 5.0

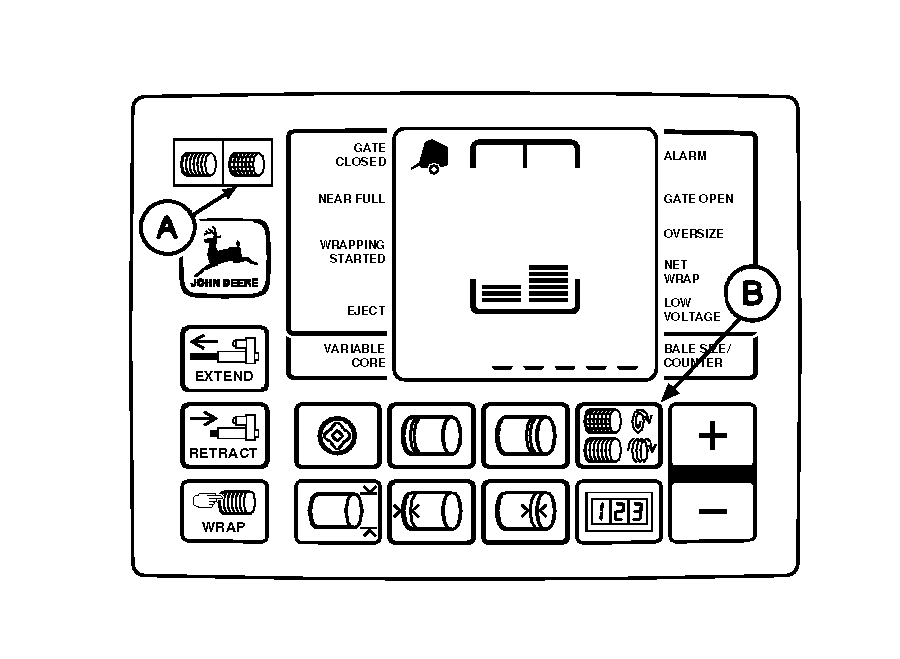

E47514


A-NET Symbol
B-NET WRAP Key

AG,OUO6017,1635 -19-04NOV99-1/1
