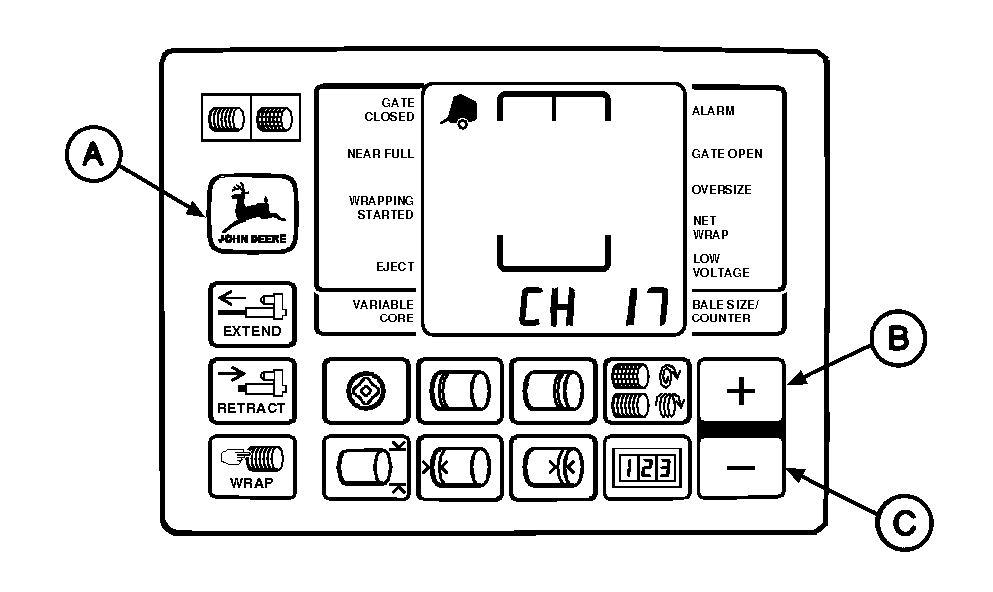

Using Dry Straw Twine Wrap Program (Advanced Operational Information) (Channel 17)When baling dry straw, it may be desirable to quickly place twine across full width of bale to prevent straw from flaking off in the baler. The dry straw twine program provides for full speed twine arm movement from right to left, after the normal full speed starting pass from left to right. The twine arms will return to the right side, pause to place the set number of right-end wraps on the bale, and continue to apply twines as set in the monitor-controller. To access program: 1. Turn tractor key to ON position. Do not start tractor engine. 2. Press and hold DEERE key (A) while setting selector switch to TWINE symbol to turn monitor-controller ON. 3. Continue to hold DEERE key (A) and press PLUS key (B) until "CH 17" appears in digital display. 4. Release DEERE key (A) and "0" should be displayed. 5. Press PLUS key (B) to "1" to activate program. 6. Set monitor-controller selector switch to OFF (centered) position, to enter setting into memory. This program will stay active until "CH 17" is accessed again and the MINUS key (C) is used to return display to "0" (OFF). 7. Turn tractor key to OFF position. Remove key. |
|
AG,OUO6017,1642 -19-04NOV99-1/1 |
