Belts Not Eligible for Warranty Replacement

The following illustrations are belts damaged by accumulation of crop and/or foreign objects on top of compressor rack and between belts in the starter roll area. A small slug of the buildup will pass between the lower drive roll and the belt, which forces the belt into the starter roll. The bars of the starter roll remove chunks of rubber from the belt and/or tear the belt fabric.

AG,OUO6017,1771 -19-01DEC99-1/7

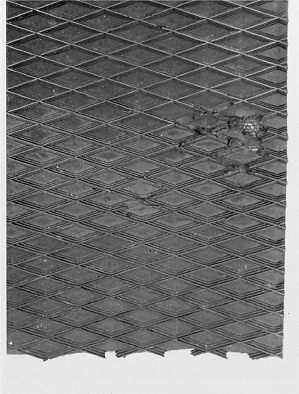

  • Chunks of rubber missing from surface of belt.
    E27608

AG,OUO6017,1771 -19-01DEC99-2/7

NOTE: This is not ply separation.

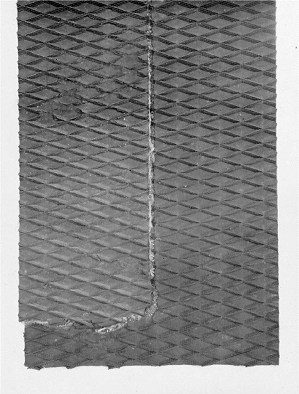

  • Belts with holes and/or tears.
    E27609

AG,OUO6017,1771 -19-01DEC99-3/7

  • Belts that are cut and/or torn in two.
    E27610

AG,OUO6017,1771 -19-01DEC99-4/7

  • Back side of belt showing damage caused by foreign objects.
    E27611

AG,OUO6017,1771 -19-01DEC99-5/7

  • Belt fabric cut when cutting down toward surface of the belt to remove diamond pattern.
    E27614

AG,OUO6017,1771 -19-01DEC99-6/7

  • Too much of diamond pattern removed for belt lacing.
E27615

AG,OUO6017,1771 -19-01DEC99-7/7
