Installing BALETRAK PLUS® Monitor-Controller in ComfortGard™ Cab

1. Remove the top two plugs from lower right-hand front cab post.

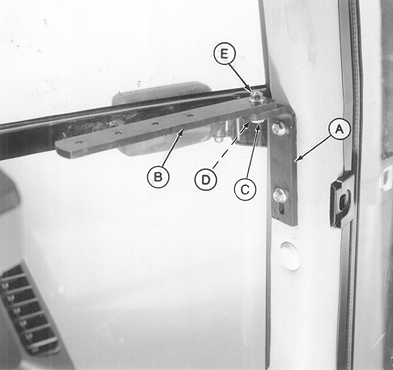

2. Install angle (A) to cab post. Fasten with two M10 x 20 flange-head cap screws.

3. Install monitor-controller strap (B) to angle (A). Fasten with M10 x 35 cap screw (C), washer (D) and flange nut (E).

A-Angle
B-Monitor-Controller Strap
C-Cap Screw, M10 x 35
D-Washer
E-Flange Nut

BALETRAK PLUS is a registered trademark of Deere & Company
ComfortGard is a trademark of Deere & Company

AG,OUO6059,200 -19-10JUL00-1/3

4. Put monitor-controller (A) pivot bracket on top of mounting bracket. Fasten with M6 x 16 cap screw.

5. Route harness along right-hand side of cab, away from operating levers, and toward the rear of cab.

A-Monitor-Controller

AG,OUO6059,200 -19-10JUL00-2/3

6. Connect harness power plug to convenience outlet (A).

7. Route harness through grommet in back of cab, or drill a 44 mm (1-3/4 in.) diameter hole in rear wall if required.

A-Convenience Outlet

AG,OUO6059,200 -19-10JUL00-3/3
