Removing and Installing Net Wrap V-Belt

1. Lock gate.

2. Start tractor and raise tension arm fully using tractor hydraulics.

3. Turn tractor key to off position. Remove key.

4. Disconnect monitor-controller power plug from tractor convenience outlet.

5. Open net wrap cover.

6. Put support under drive roll to help support weight of roll.

AG,OUO6059,244 -19-17JUL00-1/2

7. Remove cap screws (A), and cap screws and nuts (B).

8. Remove cap screw (C) and shield (D).

9. Raise brake lever and place on tab.

10. Remove cap screw, washer (F) and sheave (H).

11. Remove and replace belt (G).

12. Install in reverse of removal using the following special instructions:

  • Check belt tracking (See ADJUSTING BELT TRACKING in Service-Baler section.)

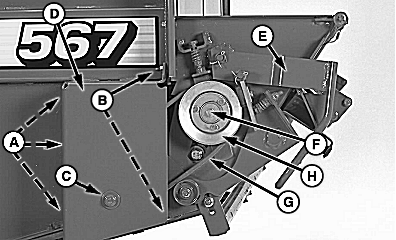

E48393


A-Cap Screws
B-Cap Screws and Nuts
C-Cap Screw
D-Shield
E-Brake Lever
F-Cap Screw and Washer
G-Belt
H-Sheave

AG,OUO6059,244 -19-17JUL00-2/2
