Test Net Wrap Switch-Monitor-Controller Assisted Test (Channel 10)

NOTE: Microswitch position and operation can be checked by using the monitor-controller diagnostic channels.

1. Turn tractor key to ON position. Do not start engine.

OUO6059,000143E -19-05FEB02-1/2

2. Press and hold DEERE key (A) while setting selector switch to NET WRAP symbol to turn monitor-controller ON. Continue to hold DEERE key and press PLUS key until "CH 10" appears in digital display.

3. Release key and view reading (Switch Closed Internally).

Diagnostic Channel Function Switch Closed Reading Switch Open Reading
10 Net Wrap Switch 00 (Zero)-Normal 12-Net Cutting (Tone)



4. Depress lever (B) to open switch internally. View second reading or listen for tone (Switch Open).

5. If readings are not as shown, Check wire hookup. (See CHECK AND ADJUST NET WRAP SWITCH in this instruction.)

6. If switch adjustment does not produce normal readings:

a. Set monitor-controller selector switch to OFF (centered) position. Turn tractor key to OFF position. Remove key.

b. Check for correct wiring connections.

c. Check wiring harness for cuts and breaks.

d. Check harness connectors for damaged (pushed in) terminals.

e. Check that wires are not shorted to each other or to ground.

f. Replace switch if necessary.

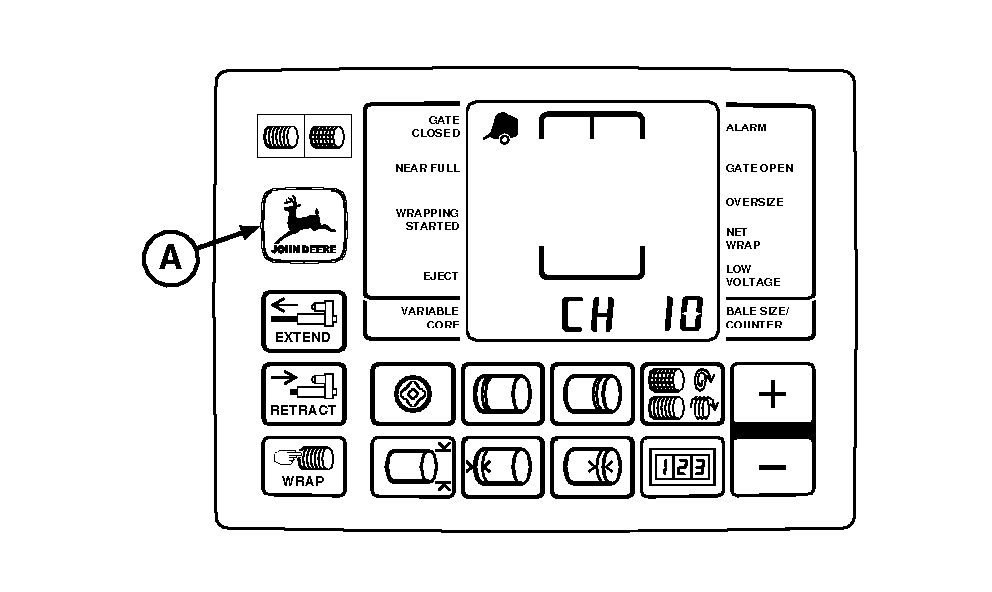

E47603

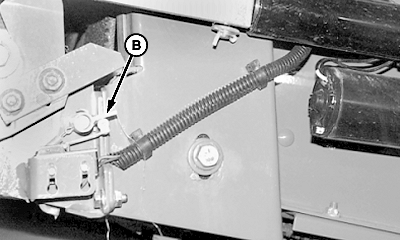

E48466


A-DEERE Key
B-Lever

OUO6059,000143E -19-05FEB02-2/2
