Adjusting Bale Diameter Sensor (Channel 005)

2. Start tractor engine.

IMPORTANT: Calibration hole is an "open" hole, not one with a cap screw.

3. Using tractor selector valve, raise belt tension arm until calibration hole (A) in tension arm is centered in baler access hole.

NOTE: If calibration hole in tension arm goes past baler access hole while raising tension arm, lower tension arm and repeat Step 3 as necessary.

4. Engage tractor parking brake and/or place transmission in "Park".

5. Shut off tractor engine.

6. Turn tractor key to ON position. Do not start tractor engine.

7. Press and hold COUNTER key (B) while turning monitor-controller ON.

8. Continue to hold COUNTER key (B) and press PLUS key (C) until "CH 005" appears in digital display. Release COUNTER key (B) and view bale size sensor number.

9. Loosen mounting hardware and rotate sensor (D) fully clockwise. Rotate sensor counterclockwise until "208" is displayed and a steady tone sounds.

NOTE: If "208" is exceeded while rotating sensor counterclockwise or while tightening screws, rotate sensor clockwise and repeat Steps 9 and 10 as necessary.

10. Tighten sensor mounting screws.

11. To check adjustment:

• Lower belt tension arm using tractor selector valve.

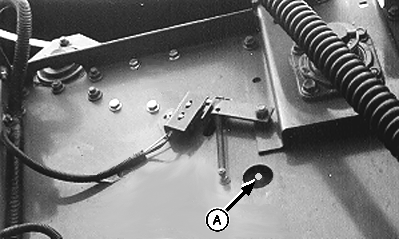

A-Calibration Hole
B-Monitor COUNTER Key
C-Monitor PLUS Key

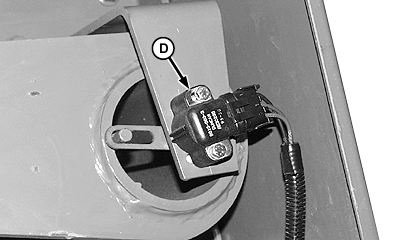

D-Sensor

AG,OUMX005,1544 -19-14APR03-1/2

• Raise belt tension arm until calibration hole appears at bottom of baler access hole.

  NOTE: If tension arm is raised too fast and monitor-controller setting goes above "208", the steady tone will not sound at the correct time.

• Continue very slowly raising tension arm and STOP raising tension arm when "208" is displayed on monitor-controller or a steady tone sounds.

AG,OUMX005,1544 -19-14APR03-2/2
