Checking and Adjusting Lower Net Wrap Guide

NOTE: Do not tighten lock nuts (A) at this time.

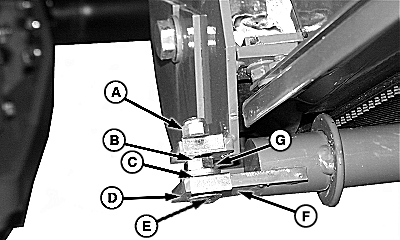

1. Install M10 x 50 round-head bolt (E), through cross bar (F), shims (C), two 10.5 x 18 x 1.60 mm washers (G) and M10 nut (B).

2. Store shims not in use at location (D).

3. Tighten nut (B).

4. Swing lower guide into position and attach to lower roll mounting plate with lock nut (A). Tighten nuts on both sides.

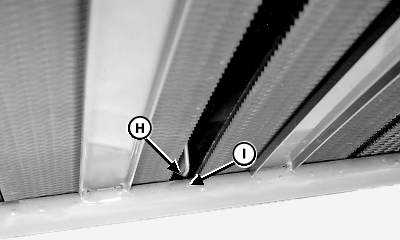

5. Check that belts are not pinched between lower belt guide straps (H) and crossbar (I). Belts must be positioned between the guide straps.

NOTE: Use 5/32 in. drill bit as a gauge to check clearance between guide straps and crossbar.

6. Check and adjust clearance between ends of all belt guide straps and bottom crossbar. Clearance must be within specifications.

Specification

Ends of Belt Guides-to-Bottom Crossbar -Clearance 3-5 mm (0.118-0.197 in.)

To obtain clearance;

a. Loosen lock nut (A) and nut (B).

b. Add or subtract washer (G) and shims (C) on both sides.

c. Tighten nut (B). Then tighten lock nut (A) on both sides.

E49028
E49054


A-Lock Nut, M10
B-Nut, M10
C-Shims
D-Shims-Storage Position
E-Round-Head Bolt, M10 x 50
F-Crossbar Mounting Bracket
G-Washer, 10.50 x 18 x 1.60 mm
H-Belt Guide Strap
I-Crossbar

AG,OUMX005,1556 -19-03AUG00-1/7

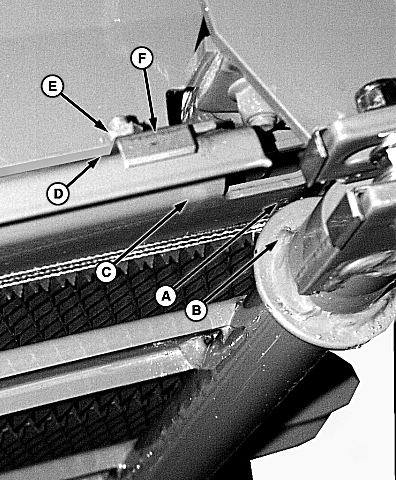

7. Check clearance (A) between guide washer (B) and lower net wrap guide (C). Clearance should be within specifications.

Specification

Belt Guide Washer-to-Lower Net Wrap Guide -Clearance 1-4 mm (0.039-0.157 in.)

8. If clearance is not within specifications, loosen nut (E) and add or subtract shims (F) between net wrap guide and deflector (D) as necessary. Tighten nut.

9. Check belt guide washer-to-lower net wrap guide clearance (A).


A-Clearance
B-Belt Guide Washer
C-Lower Net Wrap Guide
D-Placement Of Shim
E-Nut
F-Shims

E49131

AG,OUMX005,1556 -19-03AUG00-2/7

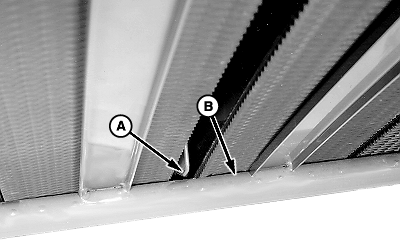

10. Check that belts are not pinched between lower belt guide straps (A) and crossbar (B). Belts must be positioned between the guide straps.

NOTE: Use 5/32 in. drill bit as a gauge to check clearance between guide straps and crossbar.

11. Check clearance between ends of all belt guide straps and bottom crossbar. Clearance must meet specifications.

Specification

Ends of Belt Guides-to-Bottom Crossbar -Clearance 3-5 mm (0.118-0.197 in.)

E40608


A-Belt Guide Strap
B-Crossbar

AG,OUMX005,1556 -19-03AUG00-3/7

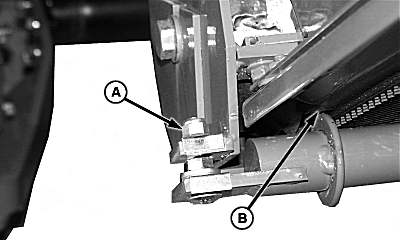

12. Check belt guide washer-to-crop deflector angle clearance (B) on both sides of machine. Clearance should be within specifications.

Specification

Belt Guide Washer-to-Crop Deflector Angle -Clearance 1-4 mm (0.039-0.157 in.)

13. Remove lock nuts (A) and insert washers as necessary.

14. Install and tighten lock nuts.

E48750


A-Lock Nut
B-Clearance

AG,OUMX005,1556 -19-03AUG00-4/7

IMPORTANT: When pan adjustment is complete, the pan should be contacting at least two belts. If pan is not touching belts, adjust crosstube to a higher position moving pan closer to the belts. Adjust both ends of crosstube as needed.

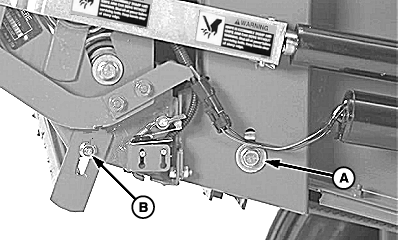

15. If lower rear gate roll is adjusted at the bottom of slot (A), adjust right-hand side crosstube to lowest position (B), as shown.


A-Roll Low Position
B-Guide Low Position

E48100

AG,OUMX005,1556 -19-03AUG00-5/7

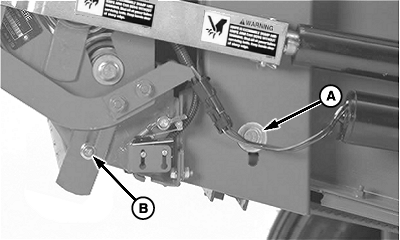

16. If lower rear gate roll is adjusted at the top of slot (A), adjust right-hand side crosstube to highest position (B), as shown.


A-Roll High Position
B-Guide High Position

E48098

AG,OUMX005,1556 -19-03AUG00-6/7

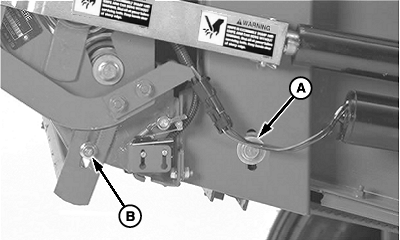

17. If lower rear gate roll is adjusted to a position (A) between top and bottom of the slot, adjust right-hand cross tube to corresponding position (B) between top and bottom of slot.

18. Adjust belt tracking. (See ADJUSTING BELT TRACKING in Service-Baler section.)


A-Roll Middle Position
B-Guide Middle Position

E48099

AG,OUMX005,1556 -19-03AUG00-7/7
