Setting Bale Diameter

Initial setting for bale diameter is 66 in. (168 cm).

Bale diameter can be set from 32 to 72 in. (81 to 183 cm) at 0.5-in. (1cm) increments.

• Press BALE DIAMETER key (A) and PLUS key to raise diameter setting.
• Press BALE DIAMETER key (A) and MINUS key to lower diameter setting.

Optional variable core diameter setting must be at least 4 in. (10 cm) under bale diameter setting.

Variable core setting need not be changed if bale size is increased, unless desired.

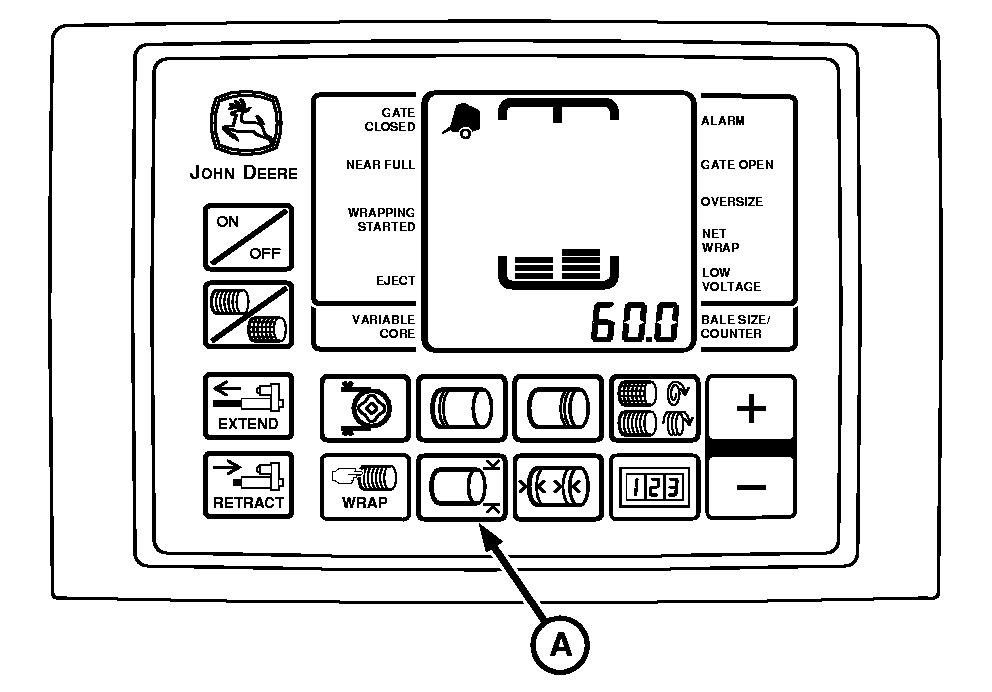

A-Bale Diameter Key
