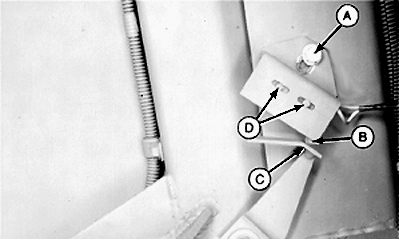

2. If necessary, loosen screws (D) and move switch front-to-rear so roller (B) is centered on short leg of ramp (C).

3. Push switch arm against switch body and measure clearance between roller and ramp. Clearance should meet specifications.

Specification

4. Loosen cap screw (A) and adjust switch up-and-down to obtain specified clearance.

5. Repeat on opposite side.

6. Confirm switch operation by taking test readings using monitor-controller. (See TESTING GATE LATCH AND OVERSIZE BALE SWITCHES-MONITOR ASSISTED [CHANNELS 13, 14 AND 15] in this section.)
