Threading Net Wrap and Routing Through Rolls

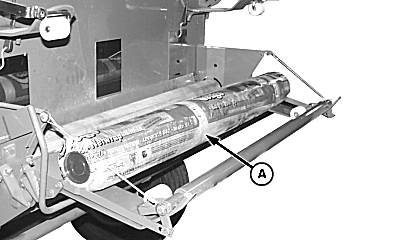

NOTE: Edge to Edge net wrap is available, but requires spacer plugs in end of roll and adjustments made to net wrap attachment. (See Adjusting Net Wrap Stretch in Service Section.) 1. Open net wrap cover. NOTE: Remove all package material (staples, tape, etc.) from net wrap roll before installing. 2. Swing lower tension arm out, and lift net wrap roll (A) to loading position.
|
|
CAUTION:
Avoid injury from net wrap system cycling and entanglement in moving rolls. Disengage PTO, shut off tractor engine and disconnect monitor-controller power plug from tractor convenience outlet before servicing.
AG,OUO6059,195 -19-10JUL00-1/5 |
|
3.

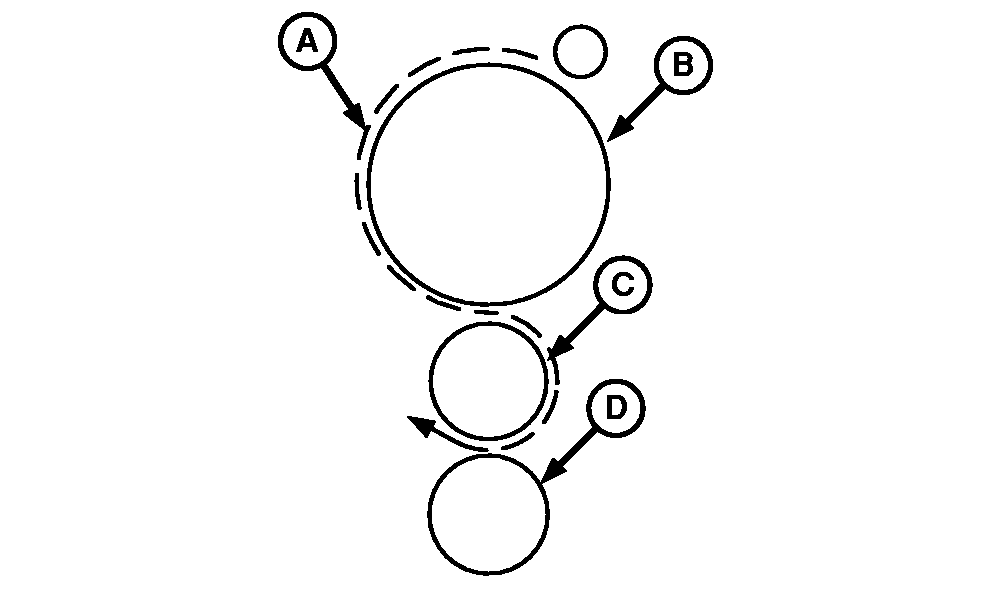

Net wrap needs to have two large stripes toward the right-hand side of machine. Thread net wrap (A) through rolls (C and D) as illustrated.
|
|
AG,OUO6059,195 -19-10JUL00-2/5 |
|
4.
Pull lever (A) out and back to disengage roller brake pad (B).
|
|
AG,OUO6059,195 -19-10JUL00-3/5 |
|

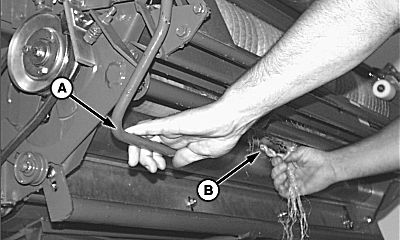

IMPORTANT: Do not thread more than 25 mm (1 in.) of loop between the two rolls or it may cause material to wrap around the rolls. IMPORTANT: Avoid knife contact with rubber roll. Any knife cuts in the rubber roll covering may result in more frequent wrapping around the rolls and may require roll replacement. NOTE: If net wrap is not being pulled off the front face of roll, the net roll has been installed backwards. (Refer to Step 1 for correct installation.) 5. Gather the loose ends of net wrap together. Twist material (B) and make a loop. Thread the loop between rolls. Cut excess material off. Ratching the brake lever (A) will turn rubber roll and start net wrap between two rolls. Engage and disengage brake lever about three times to advance net through feed roll. 6. To avoid wrapping rubber roll, release brake lever and reset brake before using. |
|
AG,OUO6059,195 -19-10JUL00-4/5 |
|
7.
Pull lever (A) out and back toward rear of machine. Make sure brake pad (B) contacts belt pulley.
8. Close net wrap cover.
|
|
AG,OUO6059,195 -19-10JUL00-5/5 |
