Checking Wheel Nut Torque

IMPORTANT: Install wheels with valve stems toward the INSIDE. Incorrect assembly can cause wheel nuts to loosen.

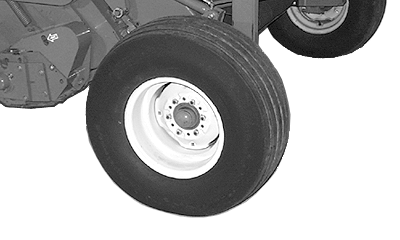

Install wheel with valve stem toward the INSIDE. Fasten with six 1/2-in. nuts.

Whenever a wheel has been removed and installed, check torque after one hour of operation. Wheel nuts should be tightened to specifications.

Specification

Wheel Nuts -Torque 115 N·m (85 lb-ft)

E48489

AG,OUO6059,197 -19-10JUL00-1/1
