Installing Net Wrap Actuator

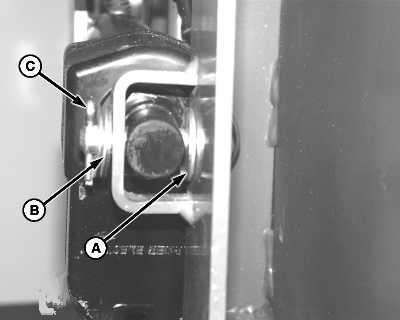

1. Install base end of actuator (motor down) on right-hand side of gate with one crowned pin. Insert pin through inside hole in actuator support, through one 13 x 25 x 3 mm washer (A), actuator, and second hole in support.

2. Install two 13 x 25 x 3 mm washers (B) and 4 x 25 cotter pin (C).


A-Washer, 13 x 25 x 3 mm
B-Washers, 13 x 25 x 3 mm (2 used)
C-Cotter Pin, 4 x 25 mm

E48087

AG,OUO6059,238 -19-15JUL00-1/2

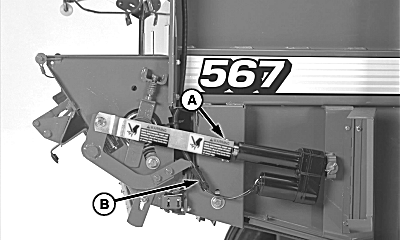

3. Install link (A) over rod end of actuator as shown. Insert one crowned pin from top through link and actuator rod.

4. Install 13 x 25 x 3 mm washer and 4 x 25 mm cotter pin.

5. Connect wire harness (B) to actuator.

6. Shut actuator door.

IMPORTANT: After installing actuator, turn monitor-controller ON. Press WRAP key to return counterknife arms to home position. Turn monitor-controller off to cancel STOP alarm. If this procedure is not followed, net will be fed continuously during the next bale.

7. Connect monitor-controller power plug to tractor convenience outlet. Turn tractor key to ON position. Do not start tractor engine. Turn monitor-controller ON.

8. Cycle actuator several times using WRAP key. Observe actuator to make sure it fully extends and fully retracts. If not, check for binding at mounting pins and washers, clean electrical connections, and check for low tractor voltage. There should be a minimum of 9.7 volts with tractor engine running and the net actuator installed.

9. Press WRAP key and return net knife to home (downward) position.

10. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

11. Check and adjust feed roll brake (See CHECKING AND ADJUSTING FEED ROLL BRAKE in this section.)

E48392


A-Pin
B-Wire Harness
