Correcting Net Wrap Feeding Problems

CAUTION: Avoid injury from entanglement in moving rolls. Disengage tractor PTO, shut off tractor and disconnect monitor-controller power plug before servicing.

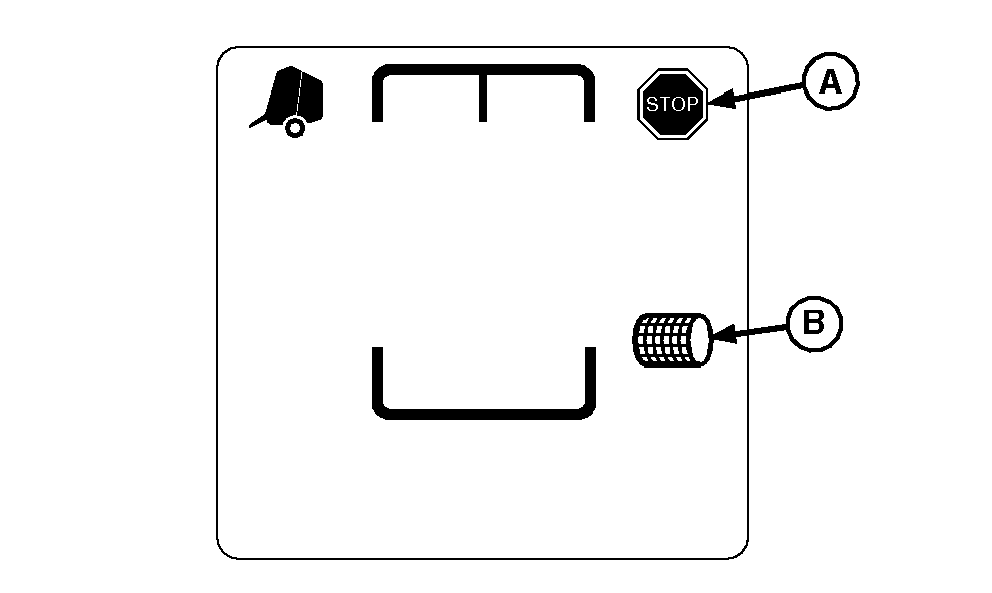

STOP (A) and NET WRAP (B) indicators will display and the alarm will sound if net does not feed properly or if the knife does not cut the net.

A-STOP Indicator
B-NET WRAP Indicator

AG,OUO6059,246 -19-17JUL00-1/4

To correct net feeding or knife problems:

2. Open net wrap cover.

3. Pull lever (A) out and back to disengage roller brake pad (B).

4. Inspect brake pad and belt for wear and damage; replace if necessary.

A-Brake Lever
B-Brake Pad

AG,OUO6059,246 -19-17JUL00-2/4

IMPORTANT: Do not cut net wrap material from rubber feed roll. Any knife cuts in the rubber roll covering may result in more frequent wrapping around the rolls and may require roller replacement.

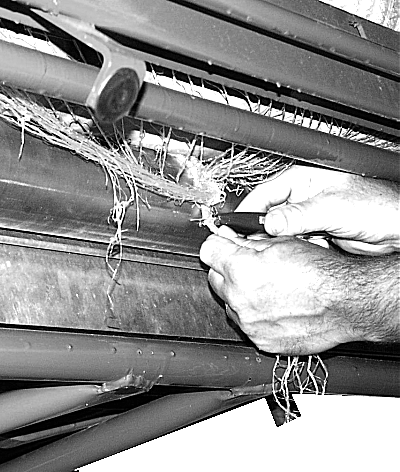

5. Pull net wrap material away from the supply roll and steel roll. Cut net wrap material.

6. Remove and discard all of the wrapped material, including all strings, staples, etc.

7. Wipe off rubber drive roll and check for any sticky material. If necessary, roll may be washed with soap and water. NEVER use solvents to clean rubber roll. Allow rolls to dry before threading or wrappage may occur again.

8. Thread net wrap material. (See THREADING NET WRAP AND ROUTING THROUGH ROLLS in Preparing Baler for Net Wrap section.)

NOTE: Only use 100% baby power (NON CORN STARCH) when dusting rubber drive roller.

9. If static electricity or dampness causes net wrap material to cling to the rolls, dust the rubber drive roller with baby powder.

10. If feed roll has been cut, repair if necessary. (See REPAIRING CUTS ON FEED ROLL in this section.)

AG,OUO6059,246 -19-17JUL00-3/4

12. Close net wrap cover.

A-Brake Lever
B-Brake Pad

AG,OUO6059,246 -19-17JUL00-4/4
